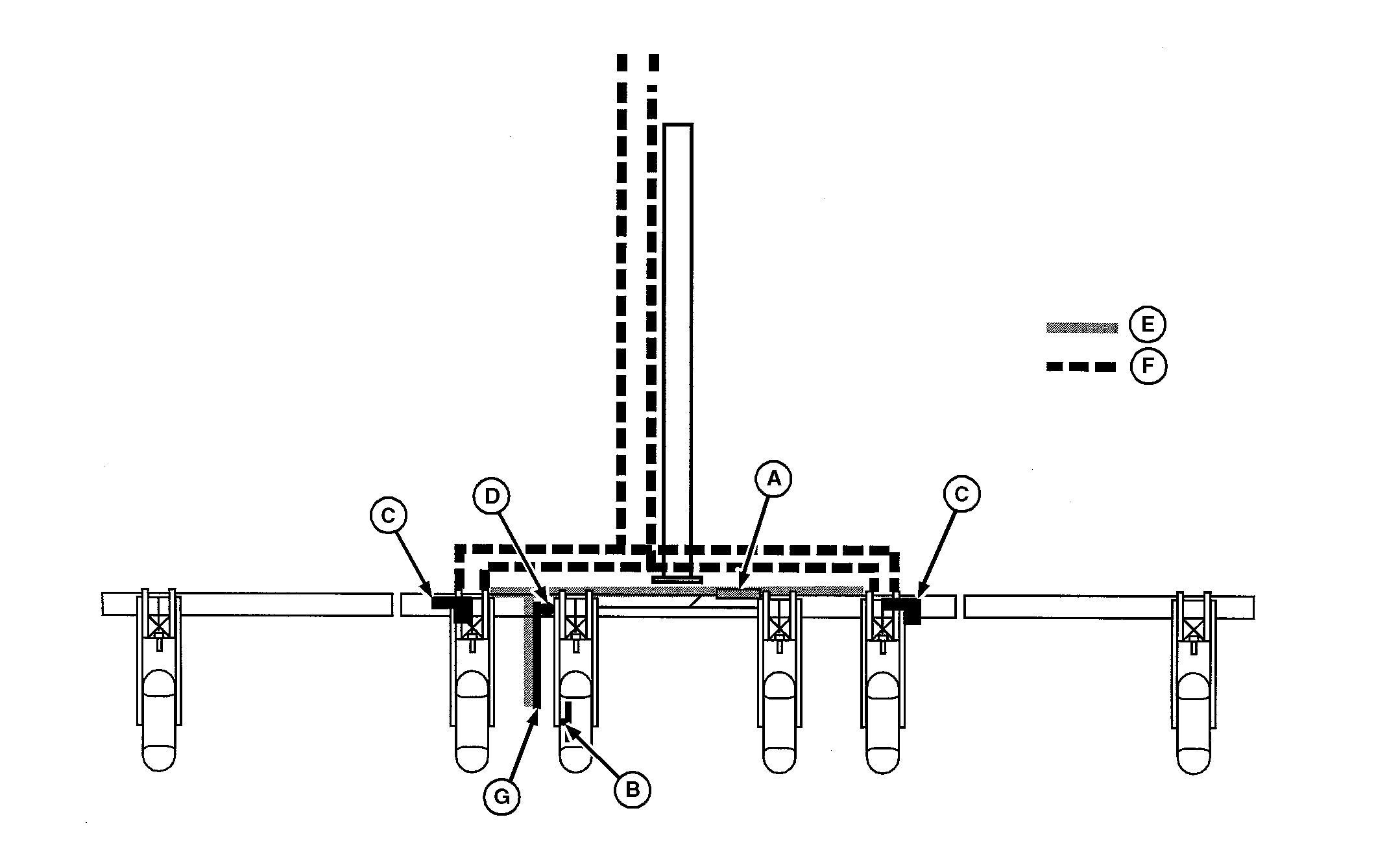

Component Locations-1760/1760NT Planters with Dual Motors

A61083

A-Controller
B-Motion Sensor

C-VRD Motor
D-Height Sensor

E-Electrical
F-Hydraulic

G-Shield
