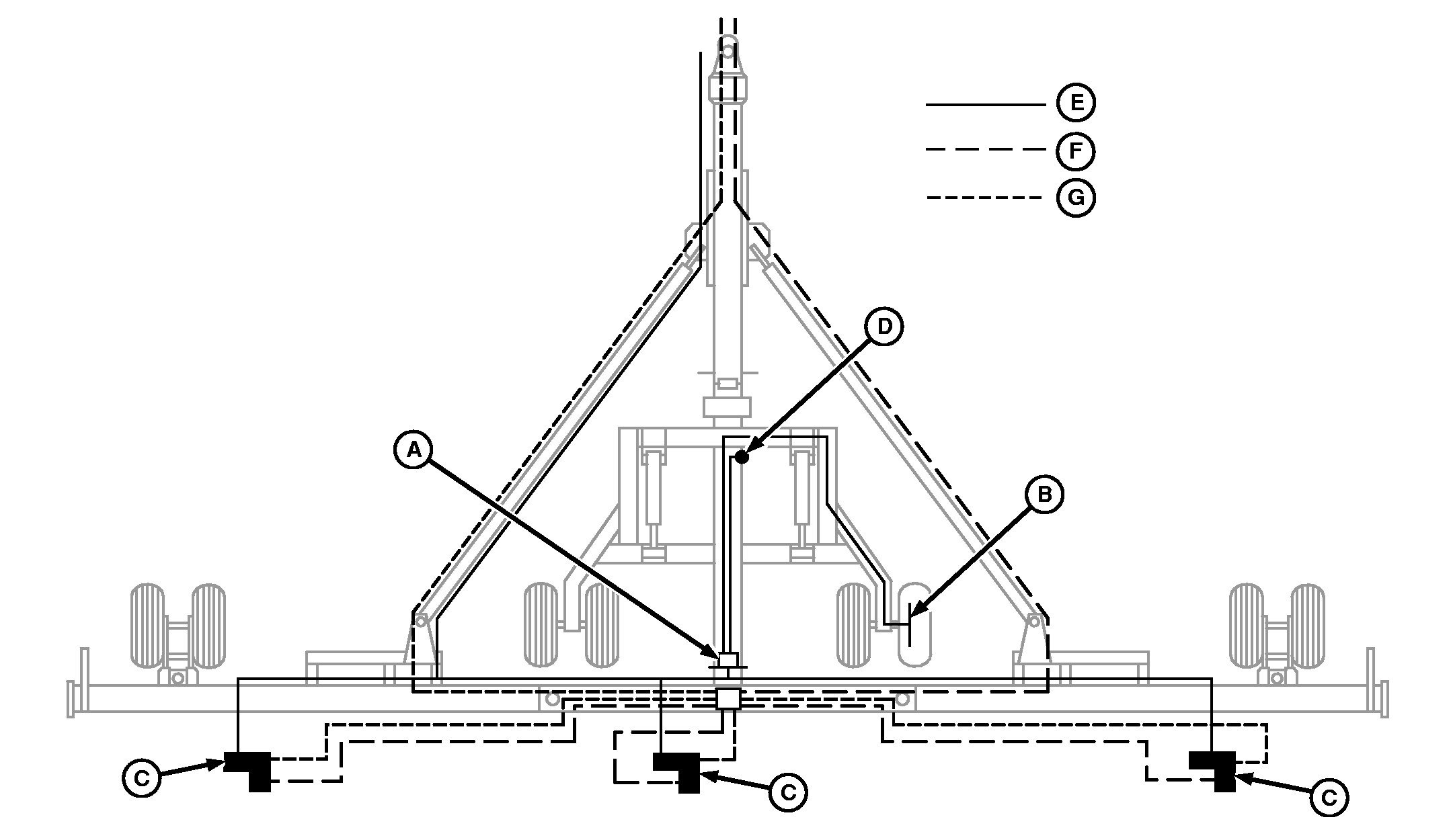

Component Locations-Deere/Bauer with Three Motors

A61087


A-Controller
B-Motion Sensor


C-VRD Motor
D-Height Sensor


E-Electrical
F-Hydraulic Pressure


G-Hydraulic Return

OUO6074,0001066 -19-10OCT07-1/1
