Half Screen Layout

NOTE: Half screen layout is only available on John Deere ™ SeedStar™ 2 Monitor.

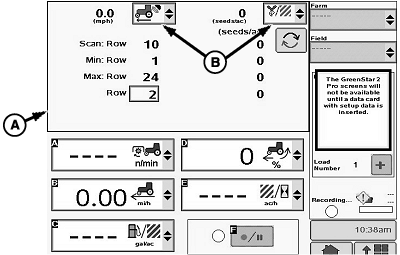

Planter screens only appear as full screen or half screen (A). When half screen layout is selected, less information is presented in screen area. Error messages do not appear on half screen. Return to full screen mode to view error messages when an audio alert signals an error.

To setup screen layout (see SCREEN LAYOUT MANAGER in How to Use Monitor section).

To enter full screen mode, select Menu >> Planter .

NOTE: Half screen layout must be set using layout manager first.

To return to half screen mode, select Menu >> Layout Manager >> Enter .

A-Half Screen
B-Counter and Speed Options

John Deere is a trademark of Deere & Company

OUO6074,000107B -19-14NOV07-1/1
