Warning Screens

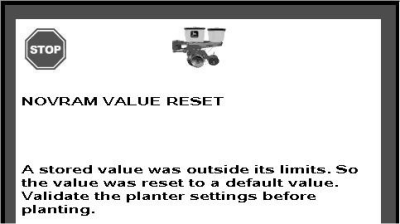

NOVRAM VALUE RESET
A stored value was outside its limits. The value was reset to a default value. Validate the planter settings before planting.
|
|
|
|
OUO6074,000107E -19-19NOV07-1/26
|
|

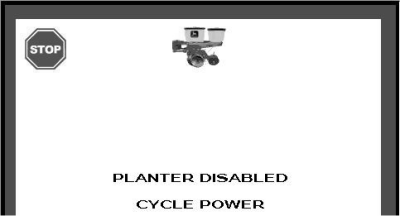

PLANTER DISABLED CYCLE POWER
|
|
|
|
OUO6074,000107E -19-19NOV07-2/26
|
|

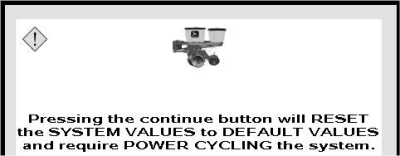

Pressing the continue button resets the system values to default values and requires power cycling the system.
|
|
|
|
OUO6074,000107E -19-19NOV07-3/26
|
|

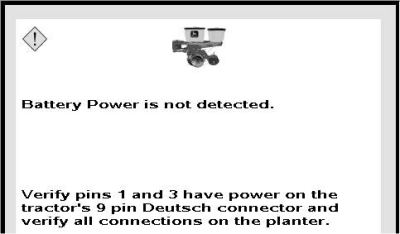

Battery power is not detected.
Verify pins 1 and 3 have power on the tractor 9 pin Deutsch connector and verify all connections on the planter.
|
|
|
|
OUO6074,000107E -19-19NOV07-4/26
|
|

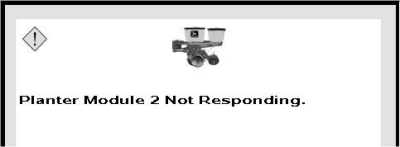

Planter module 2 not responding.
|
|
|
|
OUO6074,000107E -19-19NOV07-5/26
|
|

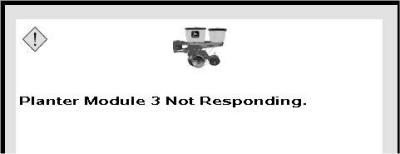

Planter module 3 not responding.
|
|
|
|
OUO6074,000107E -19-19NOV07-6/26
|
|

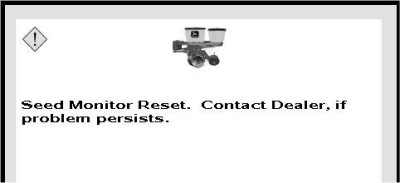

Seed monitor reset. Contact dealer, if problem persists.
|
|
|
|
OUO6074,000107E -19-19NOV07-7/26
|
|

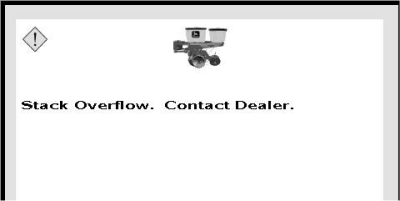

Stack overflow. Contact dealer.
|
|
|
|
OUO6074,000107E -19-19NOV07-8/26
|
|

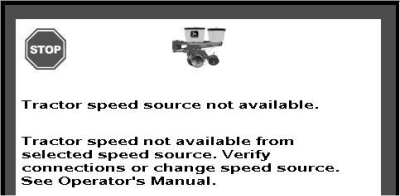

Tractor speed source not available.
Tractor speed not available from selected speed source. Verify connection or change speed source. See operator's manual.
|
|
|
|
OUO6074,000107E -19-19NOV07-9/26
|
|

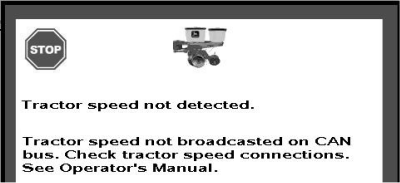

Tractor speed not detected. Tractor speed not broadcasted on CAN bus. Check tractor speed connections. See operator's manual.
|
|
|
|
OUO6074,000107E -19-19NOV07-10/26
|
|

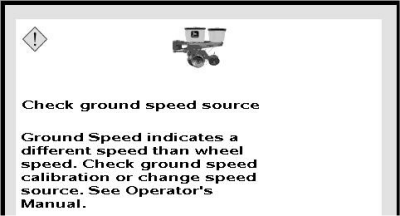

Check ground speed source.
Ground speed indicates a different speed than wheel speed. Check ground speed calibration or change speed source. See operator's manual.
|
|
|
|
OUO6074,000107E -19-19NOV07-11/26
|
|

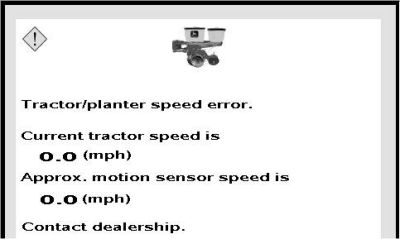

Tractor/planter speed error.
Current tractor speed is 0.0
Approximate motion sensor speed is 0.0
Contact dealer.
|
|
|
|
OUO6074,000107E -19-19NOV07-12/26
|
|

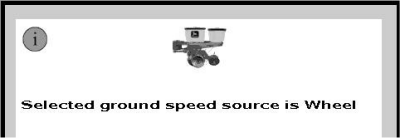

Selected ground speed source is wheel.
|
|
|
|
OUO6074,000107E -19-19NOV07-13/26
|
|

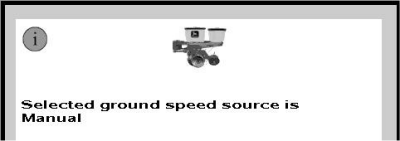

Selected ground speed source is manual.
|
|
|
|
OUO6074,000107E -19-19NOV07-14/26
|
|

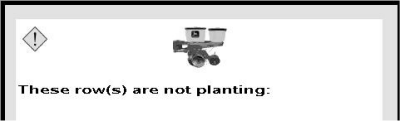

These rows are not planting.
|
|
|
|
OUO6074,000107E -19-19NOV07-15/26
|
|

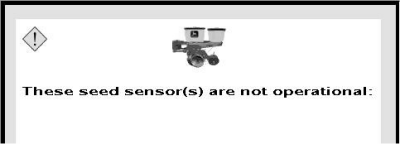

These seed sensors are not operational.
|
|
|
|
OUO6074,000107E -19-19NOV07-16/26
|
|

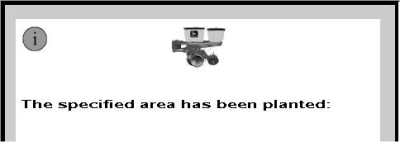

The specified area has been planted.
|
|
|
|
OUO6074,000107E -19-19NOV07-17/26
|
|

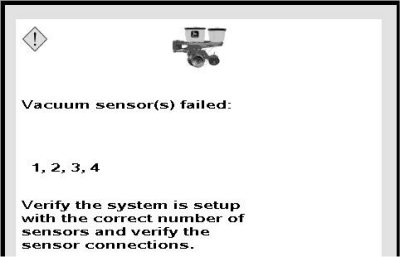

jVacuum sensors failed.
Verify the system is setup with the correct number of sensors and verify the sensor connections.
|
|
|
|
OUO6074,000107E -19-19NOV07-18/26
|
|

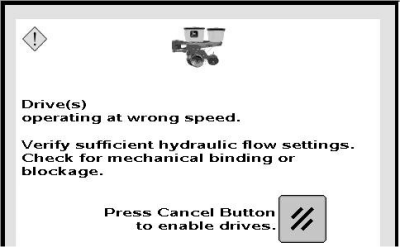

jDrives operating at wrong speed.
Verify sufficient hydraulic flow settings. Check for mechanical binding or blockage. Press cancel button to enable drives.
|
|
|
|
OUO6074,000107E -19-19NOV07-19/26
|
|

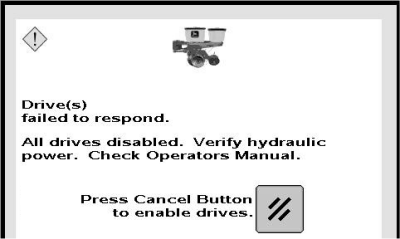

Drives failed to respond.
All drives disabled. Verify hydraulic power. Check operator's manual. Press cancel button to enable drives.
|
|
|
|
OUO6074,000107E -19-19NOV07-20/26
|
|

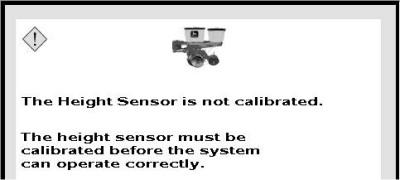

The height sensor is not calibrated.
The height sensor must be calibrated before the system operates correctly.
|
|
|
|
OUO6074,000107E -19-19NOV07-21/26
|
|

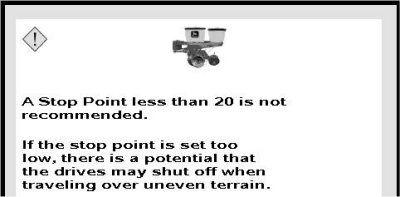

A stop point less than 20 is not recommended.
If the stop point is set too low, there is potential for the drives to shut off when traveling over uneven terrain.
|
|
|
|
OUO6074,000107E -19-19NOV07-22/26
|
|

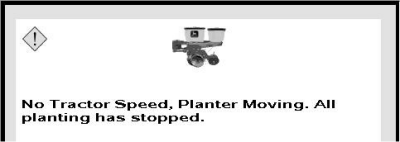

No tractor speed and planter moving. All planting has stopped.
|
|
|
|
OUO6074,000107E -19-19NOV07-23/26
|
|

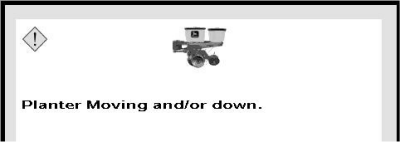

Planter moving. Planter down.
|
|
|
|
OUO6074,000107E -19-19NOV07-24/26
|
|

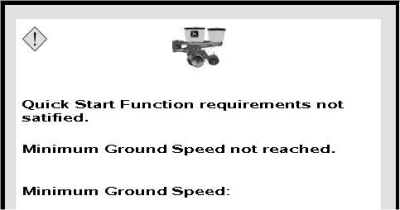

Quick start function requirements not satisfied.
Minimum ground speed not reached.
Minimum ground speed is:
|
|
|
|
OUO6074,000107E -19-19NOV07-25/26
|
|

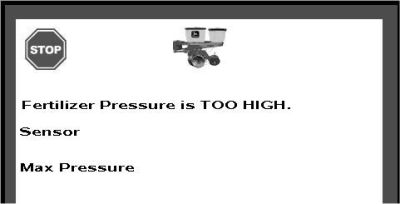

Fertilizer pressure is too high.
Sensor number:
Max pressure is:
|
|
|
|
OUO6074,000107E -19-19NOV07-26/26
|
|
