Set Pump Drive Range

IMPORTANT: Avoid pump damage. Disengage pump drive when fertilizer system is not in use.

1. Remove spring lock pins (A).

2. For LOW RANGE, place small gear in position (B) and large gear is position (C).

3. For HIGH RANGE, place small gear in position (C) and large gear in position (B).

4. Install spring lock pins (A).

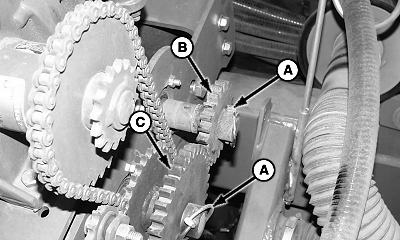

A-Spring Lock Pins
B-Position
C-Position
