Installing Storage/Service Locks

causym CAUTION: Lower machine to ground before working on any hydraulic components or welding.

IMPORTANT: Storage/service locks are not to be used as transport locks.

When storing or servicing machine, raise machine and install service locks onto both outer main frame wheel cylinders as shown. Install pin and hair pin to hold in place.

A50644

Main Frame Storage/Service Locks

A51197

Main Frame Service Lock Storage Location

OUO1074,00013A2 -19-07JUN05-1/5

When servicing machine in unfolded plant position, raise machine and install service locks on right-hand and left-hand wing wheel cylinders as shown. Install pin and hair pin to hold in place.

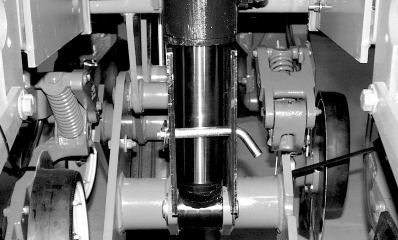

A51458

Wing Wheel Service Lock

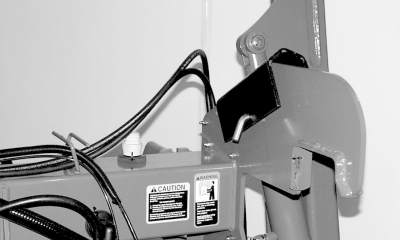

A51459

Wing Wheel Service Lock Storage Location

OUO1074,00013A2 -19-07JUN05-2/5

When servicing drawbar hitch, install service lock on hitch cylinder. Install pin and hair pin to hold in place.

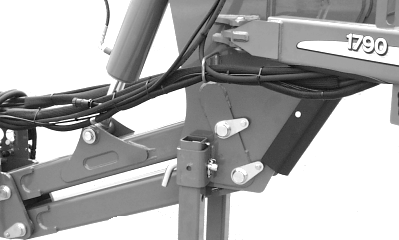

A52438

Drawbar Hitch Service Lock Storage Position

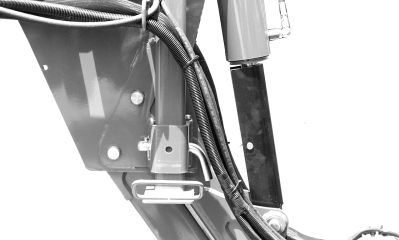

A52439

Drawbar Hitch Service Lock

OUO1074,00013A2 -19-07JUN05-3/5

When storing machine in folded position, install rockshaft service locks. Install pin and hair pin to hold in place.

A50645

Rockshaft Service Locks

A51198

Rockshaft Service Lock Storage Location

OUO1074,00013A2 -19-07JUN05-4/5

NOTE: The rockshaft service locks are longer than the split-row locks. Split-row locks are to be installed when planting 76 cm (30 in.) row spacing.

When planting with 76 cm (30 in.) row spacing, install split-row locks on right-hand and left-hand rockshafts as shown. Install pin and hair pin to hold in place.

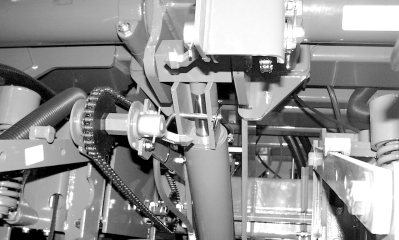

A51126

Split-Row Locks

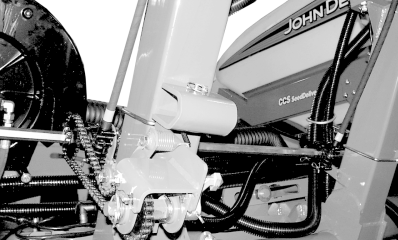

A51460

Split-Row Lock Storage Location

OUO1074,00013A2 -19-07JUN05-5/5
