Adjust Hitch Crossbar-32R15 And 24R15 Only (Two-Point Hitch)

NOTE: When attaching to a tracked tractor with the hitch in the offset position, constant steering correction is required.

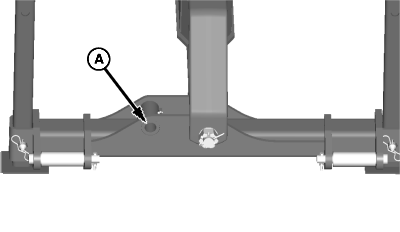

Hitch crossbar must be positioned in hole (A) for 38 cm (15 in.) row spacing.

2. Lower machine from high lift until wing wheels are firmly on ground.

3. Chock main frame wheels so machine does not roll.

4. Lower tractor rockshaft until hitch weight is fully supported by machine frame.

5. Tie a ratchet strap from tractor three point hitch to machine jack stands to support hitch crossbar when cap screw is removed.

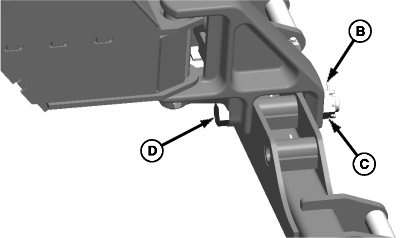

6. Remove cotter pin (B), castle nut (C), washer, and cap screw (D).

7. Lower three point hitch until crossbar clears machine.

IMPORTANT: Do not pull ahead further than hoses and harnesses allow.

8. Pull tractor ahead approximately 305 mm (12 in.) with right brake applied.

9. Back up with left brake applied until aligned with hole (A).

10. Raise three point hitch.

NOTE: Replace cotter pin (B) if damaged.

11. Install cap screw (D) washer, castle nut (C), and cotter pin (B).

A-Hole
B-Cotter Pin
C-Castle Nut
D-Cap Screw

OUO1074,00013F1 -19-01JUL05-1/1
