Disable or Enable Fertilizer Drive

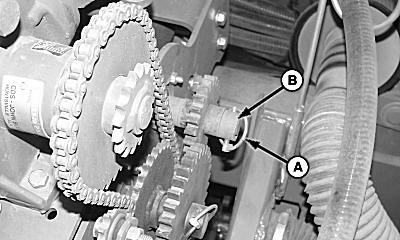

1. To disable fertilizer drive, remove pin (A) install bushing (B) in position shown. Reinstall pin.


A-Pin
B-Bushing

A51058

Disable Fertilizer Drive

OUO1074,0001426 -19-09AUG07-1/2

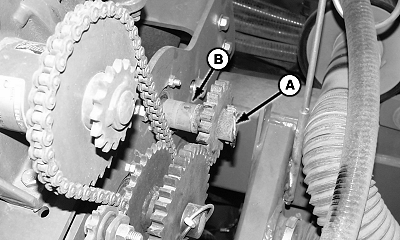

2. To enable fertilizer drive, remove pin (A) and install bushing (B) in position shown. Reinstall pin.


A-Pin
B-Bushing

A51059

Enable Fertilizer Drive

OUO1074,0001426 -19-09AUG07-2/2
