Disengaging Meter Drive

1. Rotate lock pin (A) 180 degrees until the "unlocked" symbol is on top.

2. Pull Pro-Shaft Drive cable (B) approximately 38 mm (1.5 in.) from gearbox housing (C).

3. Rotate lock pin (A) 180 degrees until the "locked" symbol is on the top.

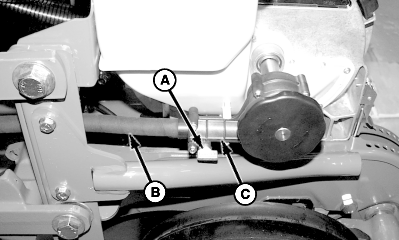

A-Lock Pin
B-Cable
C-Gearbox Housing

A49899
