Adjust Transmission Start/Stop Point

NOTE: For best results, adjust machine in field conditions.

1. With machine on level ground, raise or lower machine until row units are at the height where seeding engages and disengages. A good starting point is when the row units are barely in contact with the ground.

2. Loosen cap screws (A) to set position of stop-bar. Adjust stop-bar (B) so that it is firmly in contact with stops (C) in contact link assembly.

3. Tighten cap screws to specification.

Specification

4. Field test and adjust if necessary.

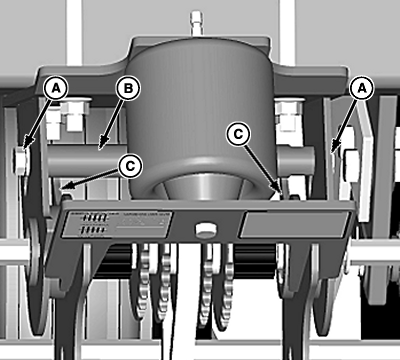

A-Cap Screws
B-Stop-Bar
C-Stops
