Engaging Meter Drive

1. Rotate lock pin (A) 180 degrees until the "unlocked" symbol is on top.

NOTE: If Pro-Shaft Drive cable does not fully engage gearbox, rotate meter drive handle (D) until cable slides into gearbox.

2. Push Pro-Shaft Drive cable (B) into gearbox housing (C).

3. Rotate lock pin (A) 180 degrees until the "locked" symbol is on the top.

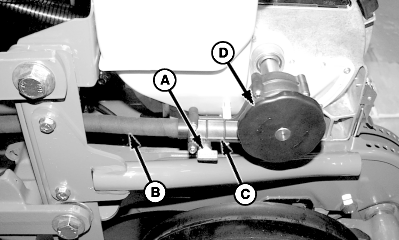

A51027


A-Lock Pin
B-Cable
C-Gearbox Housing
D-Meter Drive Handle
