Attach Machine to Tractor (Drawbar Hitch)

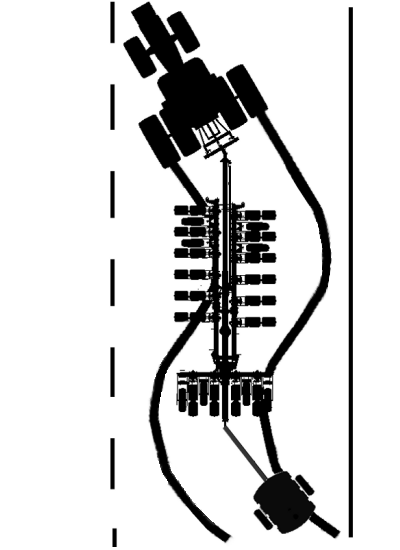

causym CAUTION: Avoid serious injury or death resulting from loss of control or rear end collision during transport of the implement and any towed load behind the implement.

Attach a properly sized safety tow chain between tractor, machine, and any towed load.

Do not transport on roadways with machine more than one-half full. Do not road transport a towed load (such as a fertilizer tank) unless it is empty.

Never exceed 13 600 kg (30 000 lb.) of towed weight behind the machine while in the field.

Transport only with a properly sized tractor. Refer to CALCULATE MINIMUM TRACTOR WEIGHT FOR SAFE TRANSPORT in Prepare Tractor section.

Do not transport on a roadway unless the towed load has two functioning tail lights. Attach an appropriate lighting harness to the 7-pin connector. Contact your John Deere dealer for accessory lights and lighting harnesses.

Be certain that the towed load has an appropriate SMV emblem and rear reflectors. Ensure that the reflective material and the SMV are clean and visible.

When towing on a roadway, refer to TOW LOADS SAFELY in the Safety section.

NOTE: It can be necessary to connect hydraulic hoses and move hitch into position.

1. Back tractor to hitch.

A48848

OUO6045,000002F -19-04JUN08-1/4


IMPORTANT: Fan motor case drain hose MUST be attached to low-pressure drain connection PRIOR to inlet and return hoses being connected. Case drain MUST have LESS THAN 172 kPa (1.72 bar) (25 psi) or fan motor damage occurs.

IMPORTANT: Installation of a Low-Pressure Drain Line Kit is required when towing tractor is not equipped.

IMPORTANT: DO NOT USE other ports at the rear of the tractor (such as power beyond ports) which can be similar in appearance and size to low-pressure drain port. Due to high back-pressure (over 172 kPa 1.72 bar] [25 psi]), drain connection to these ports WILL RESULT in fan motor damage.

2. Attach case drain hose (A) to tractor low-pressure drain coupler (B).


A-Case Drain Hose
B-Low-Pressure Drain Coupler

A53393

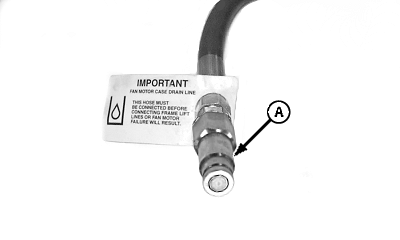

Flush Face Case Drain Tip

A53855

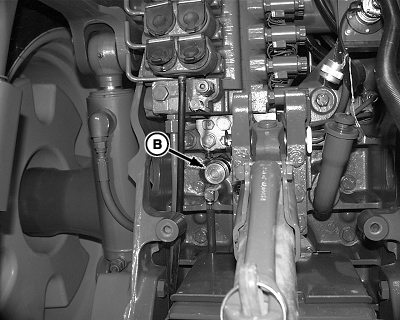

8000 Series Tractor Shown

OUO6045,000002F -19-04JUN08-2/4


IMPORTANT: Machine lift system can be out of phase. It is important to rephase lift system before operating any other functions.

NOTE: If machine is equipped with independent markers, markers and hitch use the same hoses.

3. Attach drawbar hitch hoses (A) to tractor.

4. If necessary, raise or lower hitch to align with tractor drawbar.

To raise or lower drawbar hitch, proceed as follows:

NOTE: If machine is equipped with independent markers, markers and hitch use the same hoses.

a. Place MARKER-HITCH control console switch in HITCH position.

b. Activate marker SCV to raise or lower drawbar hitch.

c. When hitch is in proper position, place MARKER-HITCH switch back to MARKER position.

A47128

8000 Series Tractor Shown


A-Drawbar Hitch Hoses

OUO6045,000002F -19-04JUN08-3/4


A52383

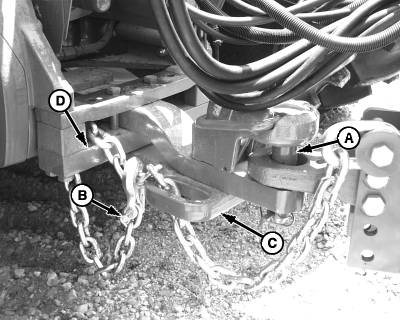

8000 Series Tractor Chain Routing

A60201

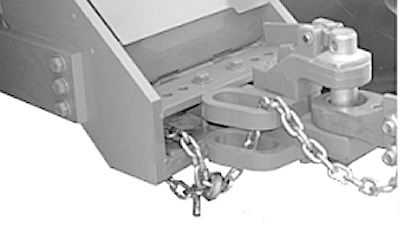

9000 Series Tractor Chain Routing

5. Install drawbar pin (A) and secure.

6. Install safety chain (B) through loop (C) and drawbar support (D).

7. Press spring latch (E) and rotate safety lock (F) open.

8. Attach hook to chain between drawbar support (D) and loop (C).

9. Press spring latch (E) and rotate safety lock (F) into closed position.


A-Drawbar Pin
B-Safety Chain
C-Loop
D-Support
E-Spring Latch
F-Safety Lock

A52496

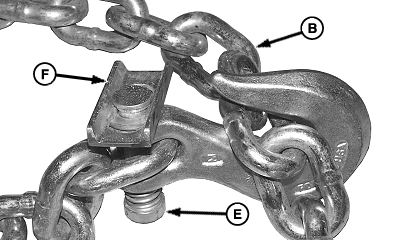

Safety Lock Open

A52497

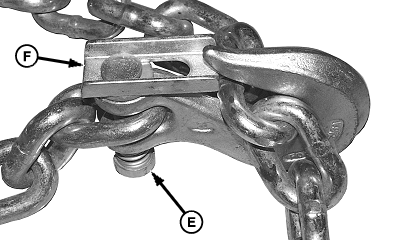

Safety Lock Closed

OUO6045,000002F -19-04JUN08-4/4
