Adjust Pump to Pump Setting Number

1. Determine pump setting from application rate chart and adjust pump accordingly.

OUO6074,00003DD -19-09AUG07-1/3

2. Install special tool (A) on pump pin (B) and align teeth with scale ring (C).

3. Loosen nut (D). Rotate scale ring with special tool until pointer (E) is aligned with number on gauge (F) corresponding to rate chart. Tighten nut to specification.

Specification

Nut -Torque 25 N·m (18 lb-ft)


A-Special Tool
B-Pin
C-Scale Ring
D-Nut
E-Pointer

A35432

OUO6074,00003DD -19-09AUG07-2/3

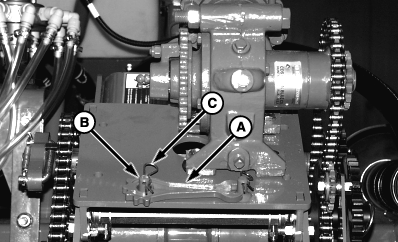

4. Store special tool (A) on pin (B) located on pump mounting bracket. Attach tool with clip pin (C).


A-Special Tool
B-Pin
C-Clip Pin

A50572
