Frame Control Console

NOTE: The lights in the MARKERS switch do not come on when the PLANT-TRANS switch is TRANS and the MAN-AUTO switch is in the middle position.

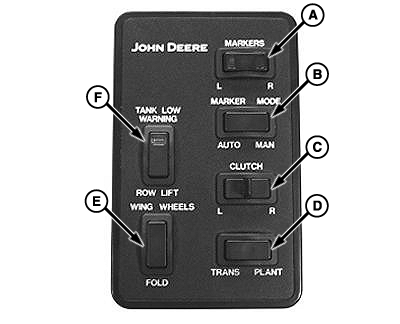

A -MARKERS switch controls individual marker use when MARKER MODE switch is in MAN position.

B -MARKER MODE switch allows manual or automatic alternation of markers.

C -CLUTCH DISENGAGE switch disengages a drive on either half of machine, for planting point rows.

D - PLANT-TRANS switch:

• When in PLANT position, allows machine to be raised or lowered without operating any switches.
• When in TRANS position, it allows machine to fold, unfold, and raise, and lower wing wheels and center wheels, and raise the rear rank row units.

E -WING WHEELS-FOLD switch is used to fold and unfold or extend and retract wing wheels.

F -TANK LOW WARNING LIGHT-ROW LIFT switch is used to alert operator when tank is low on seed and to raise rear rank row units.

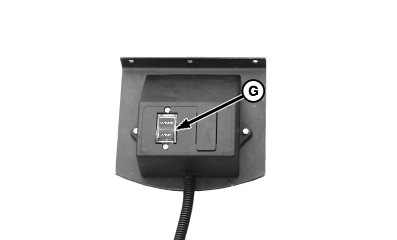

G -If equipped-DRAWBAR HITCH-MARKER switch alternates SCV control to either drawbar hitch or independent markers.
