Detaching Machine from Tractor

causym CAUTION: To avoid injury from escaping hydraulic oil under pressure. Remove all trapped pressure out of machine hydraulic system. Lower machine to ground or on service stops. Place SCV in FLOAT. Cycle all control console switches. Turn off engine.

NOTE: Not necessary to turn off tractor if detaching machine from John Deere Tractors with ISO couplers.

1. Remove spring locking pins (B) and drilled pins (A) and lower hitch stands.

2. Install drilled pins and spring locking pins.

3. Install service locks on wheel cylinders.

4. Lower machine onto the ground or onto the service locks.

5. TRACTORS WITH ELECTRO/HYDRAULIC SCV'S: Leave engine running.

TRACTORS WITH MECHANICAL SCV'S: Stop engine, turn key switch on.

6. Place SCV levers in float position.

7. Turn tractor key switch off.

8. Disconnect all hydraulic hoses.

9. Disconnect harnesses.

10. Disconnect liquid herbicide hoses (if equipped).

11. TWO-POINT HITCH: Raise handles on tractor quick-coupler and lower the tractor rockshaft until the quick-coupler is below the machine hitch pins.

DRAWBAR HITCH: Remove hitch pin.

Drive tractor away slowly.

A47888

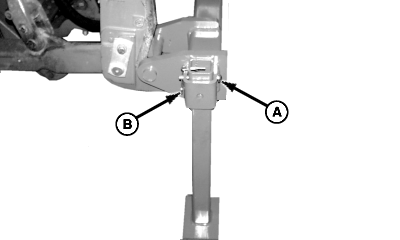

Two-Point Hitch

A60521

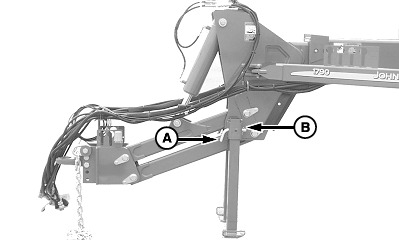

Drawbar Hitch


A-Drilled Pin
B-Spring Locking Pin

OUO6074,0000A7F -19-01JUL08-1/2

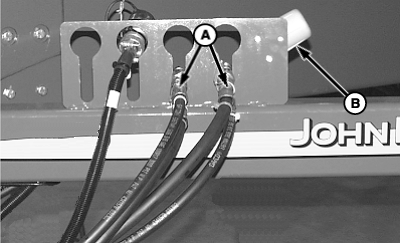

12. Place machine hydraulic hoses (A) and 7-pin connector (B) into holding bracket as illustrated.


A-Hoses, Hydraulic
B-7-Pin Connector

A52426

OUO6074,0000A7F -19-01JUL08-2/2
