Lubrication-Every 10 Hours or Daily
|
|
Frame Mounted Fertilizer Opener 24R20 Machines
|
Frame Mounted Fertilizer Opener Split Row Machines
|

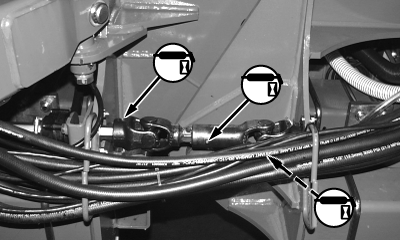

Telescoping Drive Shaft
|

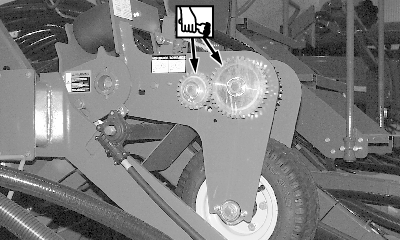

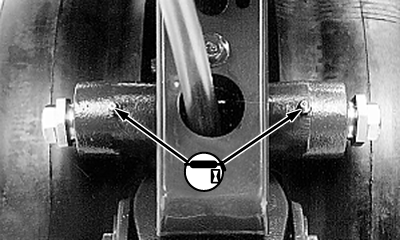

Lift Wheel Pivot
|

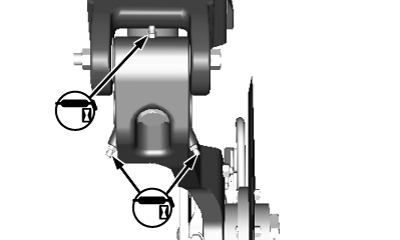

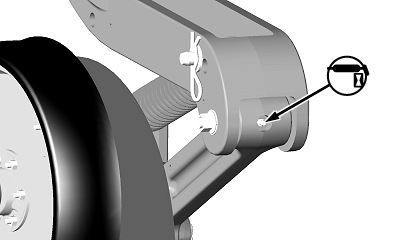

Hitch Pivot
|

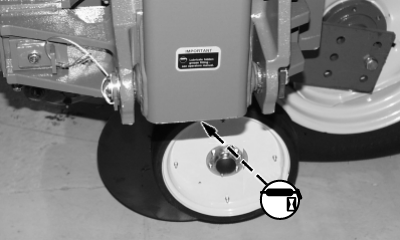

Gauge Wheels
|
Marker Pivot (30' Machines Only)
|
|
|
OUO6074,0000A8E -19-22FEB06-1/4
|

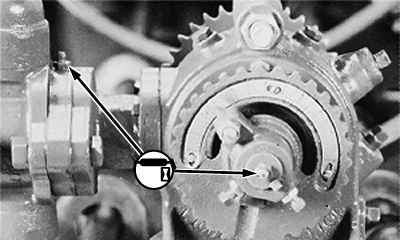

Piston Pump Shafts (If Equipped)
|

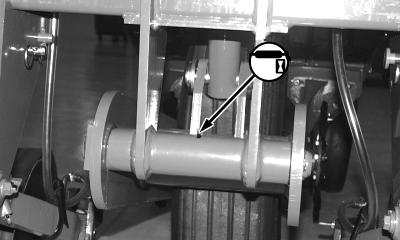

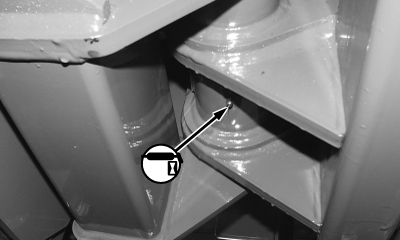

Hitch Pivot
|

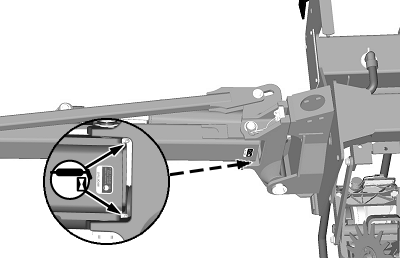

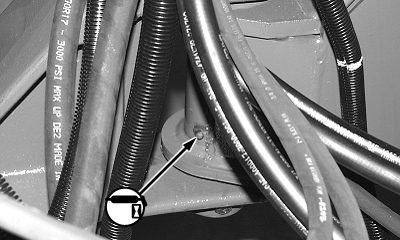

Wing Flex Pivot
|

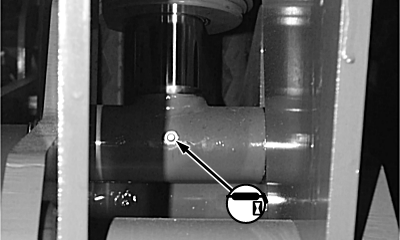

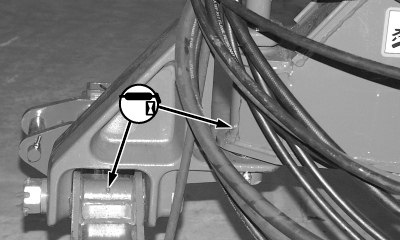

Lift Frame Cylinder Pin
|
|
|
Smear A Small Amount Of Grease
|
|
|
OUO6074,0000A8E -19-22FEB06-2/4
|
|
Fill crankcase of pump with TY6296 SAE 80/90 W EP gear oil or equivalent at port (A). Fill crankcase level to check port (B). Check level daily thereafter.
A-Port
B-Port
|
Piston Pump (If Equipped)
|
|
|
OUO6074,0000A8E -19-22FEB06-3/4
|
|

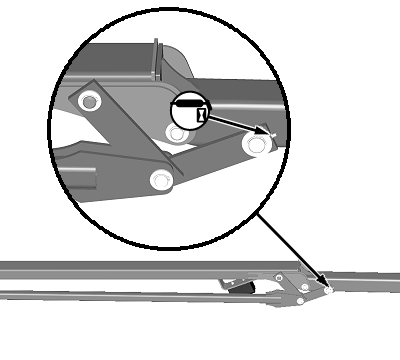

(40' Machines Only): Grease marker pivots and control straps with marker extended and blade slightly above ground. Marker will still be slightly in the air.
|
Marker Control Strap
|
|
|
OUO6074,0000A8E -19-22FEB06-4/4
|
|
