Route Additional Hoses

IMPORTANT: Avoid machine damage. Do NOT route any additional hoses through P-clamp (A).

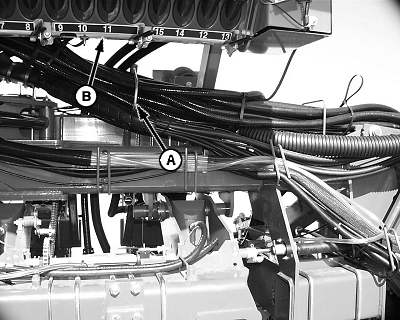

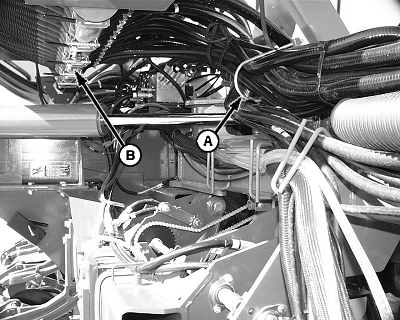

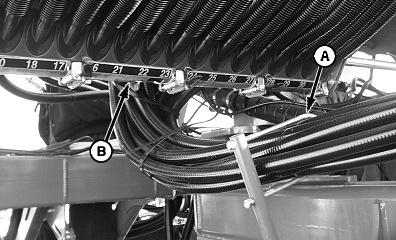

The P-clamp (A) holding seed delivery hoses is designed to pivot hoses away from tank manifold (B) when folding. Do not route additional hoses, installed with field attachments or aftermarket products, through P-clamp. Additional hoses inhibit the clamps function and planter damage is possible.

A-P-Clamp
B-Manifold

OUO6074,0000C0E -19-06APR04-1/1
