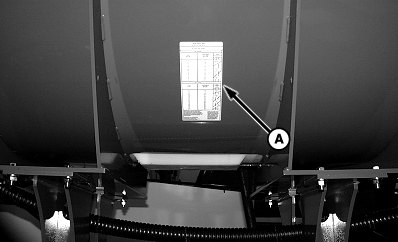

Liquid Fertilizer Rate ChartsThe rate charts (A) are effected by many factors such as wheel slippage and material used therefore, this chart should be used only as a guide. |
|
| 1700 SERIES PLANTER FERTILIZER MATRIX - TO ENSURE ROW TO ROW RATE CONSISTENCY FOR LIQUID FERTILIZER ATTACHMENT WITH PISTON PUMP | ||||
|---|---|---|---|---|
| DELIVERY SYSTEM | FRAME MOUNTED SINGLE DISK OPENER | UNIT MOUNTED DOUBLE DISK OPENER | SINGLE DISK UNIT MOUNTED INJECTION OPENER | LESS OPENERS |
| LOW PRESSURE FLOW DIVIDER DELIVERY SYSTEM | NO ORIFICE OR NOZZLE REQUIRED. STANDARD 6.9 kPa (0.07 bar) (1 psi) CHECK VALVES REQUIRED FOR APPLICATION RATES OF 94 L/ha (10 gpa) OR LESS. SHORTEST DELIVERY HOSE LINE MUST NOT BE ANY SHORTER THAN 1/2 THE LENGTH OF THE LONGEST HOSE. |
NO ORIFICE OR NOZZLE REQUIRED. STANDARD 6.9 kPa (0.07 bar) (1 psi) CHECK VALVES REQUIRED FOR APPLICATION RATES OF 94 L/ha (10 gpa) OR LESS. SHORTEST DELIVERY HOSE LINE MUST NOT BE ANY SHORTER THAN 1/2 THE LENGTH OF THE LONGEST HOSE. |
NOT AVAILABLE | LOW PRESSURE SYSTEMS NOT COMPATIBLE WITH SYSTEMS USING ORIFICES OR NOZZLES; NO ORIFICE OR NOZZLE REQUIRED. STANDARD 6.9 kPa (0.07 bar) (1 psi) CHECK VALVES REQUIRED FOR APPLICATION RATES OF 94 L/ha (10 gpa) OR LESS. SHORTEST DELIVERY HOSE LINE MUST NOT BE ANY SHORTER THAN 1/2 THE LENGTH OF THE LONGEST HOSE. |
| HIGH PRESSURE CENTRAL MANIFOLD DELIVERY SYSTEM | NOT AVAILABLE | NOT AVAILABLE | PROPER NOZZLE REQUIRED FOR RATE AND TRAVEL SPEED - PRESSURE TO BE BETWEEN 138 kPa (1.4 bar) (20 psi) AND 483 kPa (5 bar) (70 psi). NO ORIFICES REQUIRED. |
HIGH PRESSURE SYSTEM SHOULD BE USED WITH OPENERS OR DELIVERY SYSTEMS REQUIRING ORIFICES OR NOZZLES. PROPER ORIFICE OR NOZZLE REQUIRED FOR RATE AND TRAVEL SPEED. |
OUO6074,0000CBD -19-08AUG07-1/3 |
|
Orifice and nozzle columns are only used with high pressure systems. |
| LIQUID FERTILIZER APPLICATION RATE | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| 51 cm (20 in.) ROW SPACING | |||||||||
| LOW RANGE | HIGH RANGE | ||||||||
| Pump Setting | Approximate Liter Per Hectare (GPA) | Travel Speed in km/h (mph) | Pump Setting | Approximate Liter Per Hectare (GPA) | Travel Speed in km/h (mph) | ||||
| 8.0 (5) | 9.6 (6) | 11.2 (7) | 8.0 (5) | 9.6 (6) | 11.2 (7) | ||||
| Orifice Number (Nozzle Number) |
Orifice Number (Nozzle Number) |
||||||||
| 3.0 | 30.9 (3.3) | 31 (1.5) | 2.0 | 55.2 (5.9) | 31 (1.5) | 31 (1.5) | 43 (2.5) | ||
| 3.5 | 35.5 (3.8) | 31 (1.5) | 31 (1.5) | 2.5 | 68.3 (7.3) | 31 (1.5) | 43 (2.5) | 43 (2.5) | |
| 4.0 | 40.2 (4.3) | 31 (1.5) | 31 (1.5) | 31 (1.5) | 3.0 | 81.4 (8.7) | 43 (2.5) | 43 (2.5) | 43 (2.5) |
| 4.5 | 44.9 (4.8 | 31 (1.5) | 31 (1.5) | 31 (1.5) | 3.5 | 94.5 (10.1) | 43 (2.5) | 43 (2.5) | 43 (2.5) |
| 5.0 | 50.5 (5.4) | 31 (1.5) | 31 (1.5) | 31 (1.5) | 4.0 | 107.6 (11.5) | 43 (2.5) | 43 (2.5) | 43 (2.5) |
| 5.5 | 55.2 (5.9) | 31 (1.5) | 31 (1.5) | 31 (1.5) | 4.5 | 121.6 (13.0) | 43 (2.5) | 43 (2.5) | 43 (2.5) |
| 6.0 | 59.9 (6.4) | 31 (1.5) | 31 (1.5) | 43 (2.5) | 5.0 | 134.7 (14.4) | 43 (2.5) | 43 (2.5) | 43 (2.5) |
| 6.5 | 64.5 (6.9) | 31 (1.5) | 31 (1.5) | 43 (2.5) | 5.5 | 147.8 (15.8) | 43 (2.5) | 43 (2.5) | 43 (2.5) |
| 7.0 | 70.2 (7.5) | 31 (1.5) | 43 (2.5) | 43 (2.5) | 6.0 | 160.9 (17.2) | 43 (2.5) | 43 (2.5) | 43 (2.5) |
| 7.5 | 74.8 (8.0) | 31 (1.5) | 43 (2.5) | 43 (2.5) | 6.5 | 174.0 (18.6) | 43 (2.5) | 43 (2.5) | 43 (2.5) |
| 8.0 | 79.5 (8.5) | 43 (2.5) | 43 (2.5) | 43 (2.5) | 7.0 | 187.1 (20.0) | 43 (2.5) | 43 (2.5) | 78 (8) |
| 8.5 | 84.2 (9.0) | 43 (2.5) | 43 (2.5) | 43 (2.5) | 7.5 | 200.2 (21.4) | 43 (2.5) | 43 (2.5) | 78 (8) |
| 9.0 | 89.8 (9.6) | 43 (2.5) | 43 (2.5) | 43 (2.5) | 8.0 | 213.3 (22.8) | 43 (2.5) | 78 (8) | 78 (8) |
| 9.5 | 94.5 (10.1) | 43 (2.5) | 43 (2.5) | 43 (2.5) | 8.5 | 226.4 (24.2) | 43 (2.5) | 78 (8) | 78 (8) |
| 10.0 | 99.2 (10.6) | 43 (2.5) | 43 (2.5) | 43 (2.5) | 9.0 | 239.5 (25.6) | 78 (8) | 78 (8) | 78 (8) |
| 9.5 | 252.6 (27.0) | 78 (8) | 78 (8) | 78 (8) | |||||
| 10.0 | 265.7 (28.4) | 78 (8) | 78 (8) | 78 (8) | |||||
| Note: The rate charts are affected by many factors including wheel slippage and material used, therefore this chart should only be used as a guide. For information on using fertilizer rate charts, see "HOW TO USE LIQUID FERTILIZER RATE CHARTS" | |||||||||
| Always perform a field check to verify desired rate. Refer to "CHECKING FERTILIZER RATES" for instructions on how to check fertilizer rates. |
|||||||||
| USE OF OPTIONAL 6.85 kPa (1 psi) CHECK VALVE IS RECOMMENDED AT RATES OF 37.8 Lpa (10 gpa) OR LESS. | |||||||||
|
Orifice and nozzle columns are only used with high pressure systems. |
OUO6074,0000CBD -19-08AUG07-2/3 |
| LIQUID FERTILIZER APPLICATION RATE | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| 76 cm (30 in.) ROW SPACING | |||||||||
| LOW RANGE | HIGH RANGE | ||||||||
| Pump Setting | Approximate Liter Per Hectare (GPA) | Travel Speed in km/h (mph) | Pump Setting | Approximate Liter Per Hectare (GPA) | Travel Speed in km/h (mph) | ||||
| 8.0 (5) | 9.6 (6) | 11.2 (7) | 8.0 (5) | 9.6 (6) | 11.2 (7) | ||||
| Orifice Number (Nozzle Number) |
Orifice Number (Nozzle Number) |
||||||||
| 3.0 | 30.9 (3.3) | 31 (1.5) | 31 (1.5) | 31 (1.5) | 2.0 | 55.2 (5.9) | 43 (2.5) | 43 (2.5) | 43 (2.5) |
| 3.5 | 35.5 (3.8) | 31 (1.5) | 31 (1.5) | 31 (1.5) | 2.5 | 68.3 (7.3) | 43 (2.5) | 43 (2.5) | 59 (5) |
| 4.0 | 40.2 (4.3) | 31 (1.5) | 31 (1.5) | 43 (2.5) | 3.0 | 81.4 (8.7) | 43 (2.5) | 59 (5) | 59 (5) |
| 4.5 | 44.9 (4.8 | 31 (1.5) | 43 (2.5) | 43 (2.5) | 3.5 | 94.5 (10.1) | 59 (5) | 59 (5) | 59 (5) |
| 5.0 | 50.5 (5.4) | 43 (2.5) | 43 (2.5) | 43 (2.5) | 4.0 | 107.6 (11.5) | 59 (5) | 59 (5) | 59 (5) |
| 5.5 | 55.2 (5.9) | 43 (2.5) | 43 (2.5) | 43 (2.5) | 4.5 | 121.6 (13.0) | 59 (5) | 59 (5) | 59 (5) |
| 6.0 | 59.9 (6.4) | 43 (2.5) | 43 (2.5) | 43 (2.5) | 5.0 | 134.7 (14.4) | 59 (5) | 59 (5) | 78 (8) |
| 6.5 | 64.5 (6.9) | 43 (2.5) | 43 (2.5) | 43 (2.5) | 5.5 | 147.8 (15.8) | 59 (5) | 59 (5) | 78 (8) |
| 7.0 | 70.2 (7.5) | 43 (2.5) | 43 (2.5) | 43 (2.5) | 6.0 | 160.9 (17.2) | 59 (5) | 78 (8) | 78 (8) |
| 7.5 | 74.8 (8.0) | 43 (2.5) | 43 (2.5) | 59 (5) | 6.5 | 174.0 (18.6) | 59 (5) | 78 (8) | 78 (8) |
| 8.0 | 79.5 (8.5) | 43 (2.5) | 43 (2.5) | 59 (5) | 7.0 | 187.1 (20.0) | 78 (8) | 78 (8) | 78 (8) |
| 8.5 | 84.2 (9.0) | 43 (2.5) | 59 (5) | 59 (5) | 7.5 | 200.2 (21.4) | 78 (8) | 78 (8) | 78 (8) or 95 (12) |
| 9.0 | 89.8 (9.6) | 43 (2.5) | 59 (5) | 59 (5) | 8.0 | 213.3 (22.8) | 78 (8) | 78 (8) | 78 (8) or 95 (12) |
| 9.5 | 94.5 (10.1) | 59 (5) | 59 (5) | 59 (5) | 8.5 | 226.4 (24.2) | 78 (8) | 78 (8) or 95 (12) | 78 (8) or 95 (12) |
| 10.0 | 99.2 (10.6) | 59 (5) | 59 (5) | 59 (5) | 9.0 | 239.5 (25.6) | 78 (8) | 78 (8) or 95 (12) | 78 (8) or 95 (12) |
| 9.5 | 252.6 (27.0) | 78 (8) or 95 (12) | 78 (8) or 95 (12) | 95 (12) | |||||
| 10.0 | 265.7 (28.4) | 78 (8) or 95 (12) | 95 (12) | 95 (12) | |||||
| Note: The rate charts are affected by many factors including wheel slippage and material used, therefore this chart should only be used as a guide. For information on using fertilizer rate charts, see "HOW TO USE LIQUID FERTILIZER RATE CHARTS" | |||||||||
| Always perform a field check to verify desired rate. Refer to "CHECKING FERTILIZER RATES" for instructions on how to check fertilizer rates. |
|||||||||
| USE OF OPTIONAL 6.85 kPa (1 psi) CHECK VALVE IS RECOMMENDED AT RATES OF 37.8 Lpa (10 gpa) OR LESS. | |||||||||
OUO6074,0000CBD -19-08AUG07-3/3 |
