Cleaning Out Seed Hoppers and Vacuum Metering Units

causym CAUTION: Avoid crushing injury. Frame control box PLANT-TRANS switch must be in TRANS position, service locks must be installed, and the following procedure must be followed as outlined.

Avoid crushing injury. When procedure is complete, place tractor selective control valve (SCV) in Neutral position before PLANT-TRANS switch is moved to PLANT position.

The Purge-Plant switch (C) allows the fan to operate while machine is in a raised position. Operator is able to clean out the CCS tanks and purge the hoses without climbing in and out of the tractor cab. The following procedure must be completed in the order given to avoid possible injury and machine damage.

causym CAUTION: Avoid crushing injury. If the rockshaft row units are raised, rockshaft cylinder locks must be installed. The rockshafts lower when SCV lever is moved to lower position.

NOTE: With frame in raised position, the CCS row unit switch disables CCS fan.

IMPORTANT: CCS fan does not operate with rockshafts raised. For purposes of cleaning the tanks, place the rockshaft in the field transport position. For 76 cm (30 in.) row spacing, place short cylinder stops on rockshaft cylinders.

1. Raise machine and do the following:

  • Place tractor in park and apply parking brake.

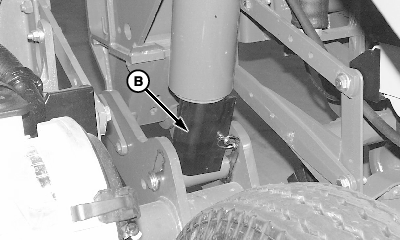

  • Install center frame service locks (B).
  • Install short cylinder stops on rear rockshafts cylinders.

2. Place (frame control box) Plant-Transport switch (A) in Transport position.

A54390
A56714
A54397


A-PLANT/TRANS Switch
B-Service Locks
C-Purge/Plant Switch

OUO6074,0000CC6 -19-03JUN08-1/7

3. Lower machine onto service locks.

OUO6074,0000CC6 -19-03JUN08-2/7

causym CAUTION: Use caution if using seed treatments when opening cleanout doors. Seed treatments can cause eye, skin, or breathing problems. Wear mask, gloves, and goggles. Read and follow safety instructions on the chemical manufactures label.

IMPORTANT: When cleaning tank for certified seed, remove all seed from tank with stiff bristled 1372 mm (4.5 ft.) handle 203 mm (8 in.) wide broom. Remove any buildup of seed treatment or talc with stiff bristled 1372 mm (4.5 ft.) handle 203 mm (8 in.) wide broom.

IMPORTANT: Make sure cleanout doors on CCS tanks are closed before folding machine or damage to doors occurs.

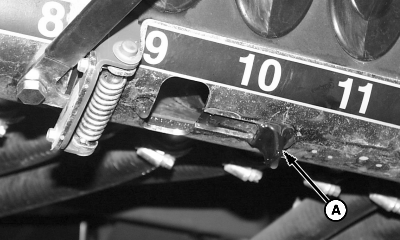

4. If tanks contain large amounts of seed, use slide door (A) to reduce seed to a manageable level. Once cleanout doors (B) are open they cannot be closed completely until seed stops flowing. Repeat on each tank.

NOTE: Purge-Plant switch must be in PLANT-TANK CLEANOUT position or CCS fan forcefully expels seed from cleanout doors.

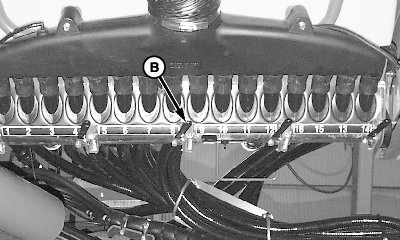

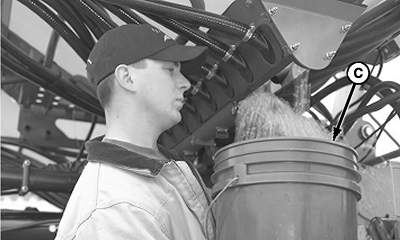

5. Place a bucket (C) or other container under cleanout door (B) and open door to clean out remaining seed.

6. Close cleanout door.

7. Repeat on remaining cleanout doors.


A-Slide Door
B-Cleanout Door
C-Bucket

A34471
A52501
A56715
A54393

OUO6074,0000CC6 -19-03JUN08-3/7

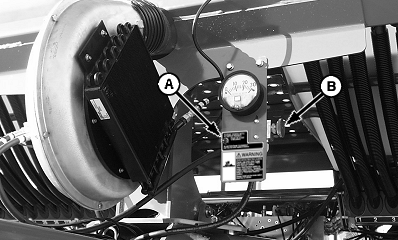

8. Place Purge-Plant switch (A) in PURGE HOSES position.

9. Adjust CCS fan control knob (B) until 20 inches of tank pressure is achieved for good delivery hose cleanout.


A-Purge/Plant Switch
B-CCS Fan Control Knob

A54379

OUO6074,0000CC6 -19-03JUN08-4/7

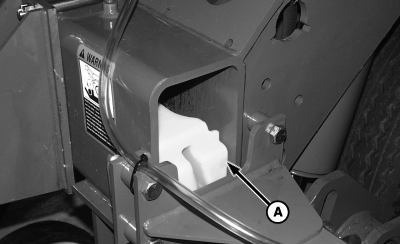

10. Remove seed meter catch pan (A) from storage location.


A-Storage Location

A51029

OUO6074,0000CC6 -19-03JUN08-5/7

causym CAUTION: Use caution if using seed treatments when opening meter domes. Seed treatments can cause eye, skin, or breathing problems. Read and follow safety instructions on the chemical manufactures label.

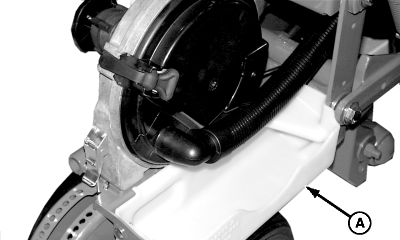

11. Install seed meter catch pan (A) on row unit. Open vacuum meter dome and slowly remove seed disk to purge seed from hose and meter housing. Install seed disk. Repeat on all rows.

12. Return seed meter catch pan to storage position.


A-Seed Meter Catch Pan

A34471
A49902

OUO6074,0000CC6 -19-03JUN08-6/7

causym CAUTION: Avoid personal injury. If switch is left in PURGE HOSES position, fan operates any time SCV is activated, even in folded position.

NOTE: The Purge-Plant switch must be returned to the PLANT-TANK CLEANOUT position for best planter performance.

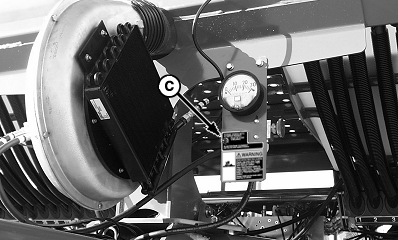

13. Place Purge-Plant switch (C) in PLANT-TANK CLEANOUT position.

causym CAUTION: Avoid crushing injury. Place tractor selective control valve (SCV) in Neutral position before PLANT-TRANS switch (A) is moved to PLANT position.

14. Place tractor SCVs in Neutral position.

15. Remove service locks (B).

16. Place PLANT-TRANS switch (A) in desired position and resume operation.


A-PLANT/TRANS Switch
B-Service Locks
C-Purge/Plant Switch

A54397
A56714
A54390

OUO6074,0000CC6 -19-03JUN08-7/7
