Lubrication-Every 50 Hours

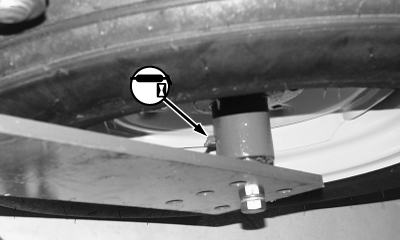

A50622

Wing Wheel Bearings

OUO6435,0001AE9 -19-19DEC06-1/4

Row cleaner has sealed bearings from factory and lubrication is not required. If a non-sealed bearing is installed, use this lubrication interval.

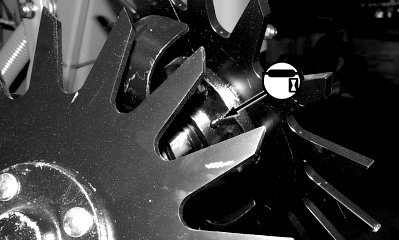

A47899

Row Cleaner

OUO6435,0001AE9 -19-19DEC06-2/4

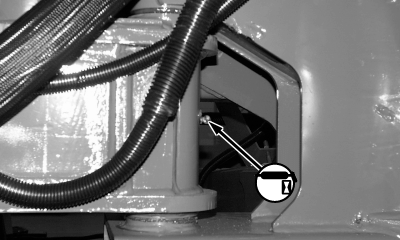

A50623

Fold Joints

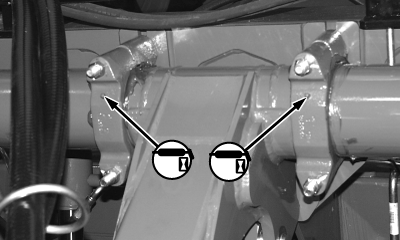

A50624

Pivot Point

OUO6435,0001AE9 -19-19DEC06-3/4

Oil lower spring pivot pins at end of each season to prevent rust.

A47157

Single-Disk Fertilizer Opener-24R20

A51069

Single-Disk Fertilizer Opener-Split-Row

OUO6435,0001AE9 -19-19DEC06-4/4
