Setting CCS Row Unit Fan Switch

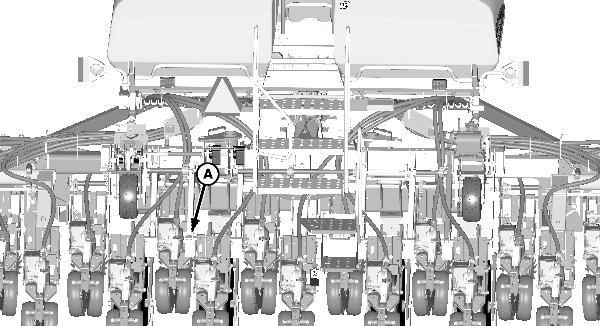

A56436


A-Row Unit Switch
B-Stop
C-Frame
D-Bracket
E-Flat Surface
F-Cap Screw

The CCS row unit switch (A) turns the CCS fan and agitator on and off as machine is raised and lowered.

1. Raise machine so lower parallel arm stop (B) touches planting unit frame (C).

2. Adjust sensor bracket (D) until flat surface (E) is 20 mm (3/4 in.) from planting unit frame.

3. Tighten cap screw (F).

4. Adjust switch so agitator stops rotating in this position.

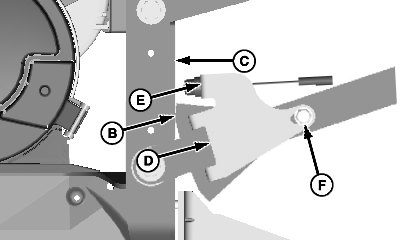

A56437
