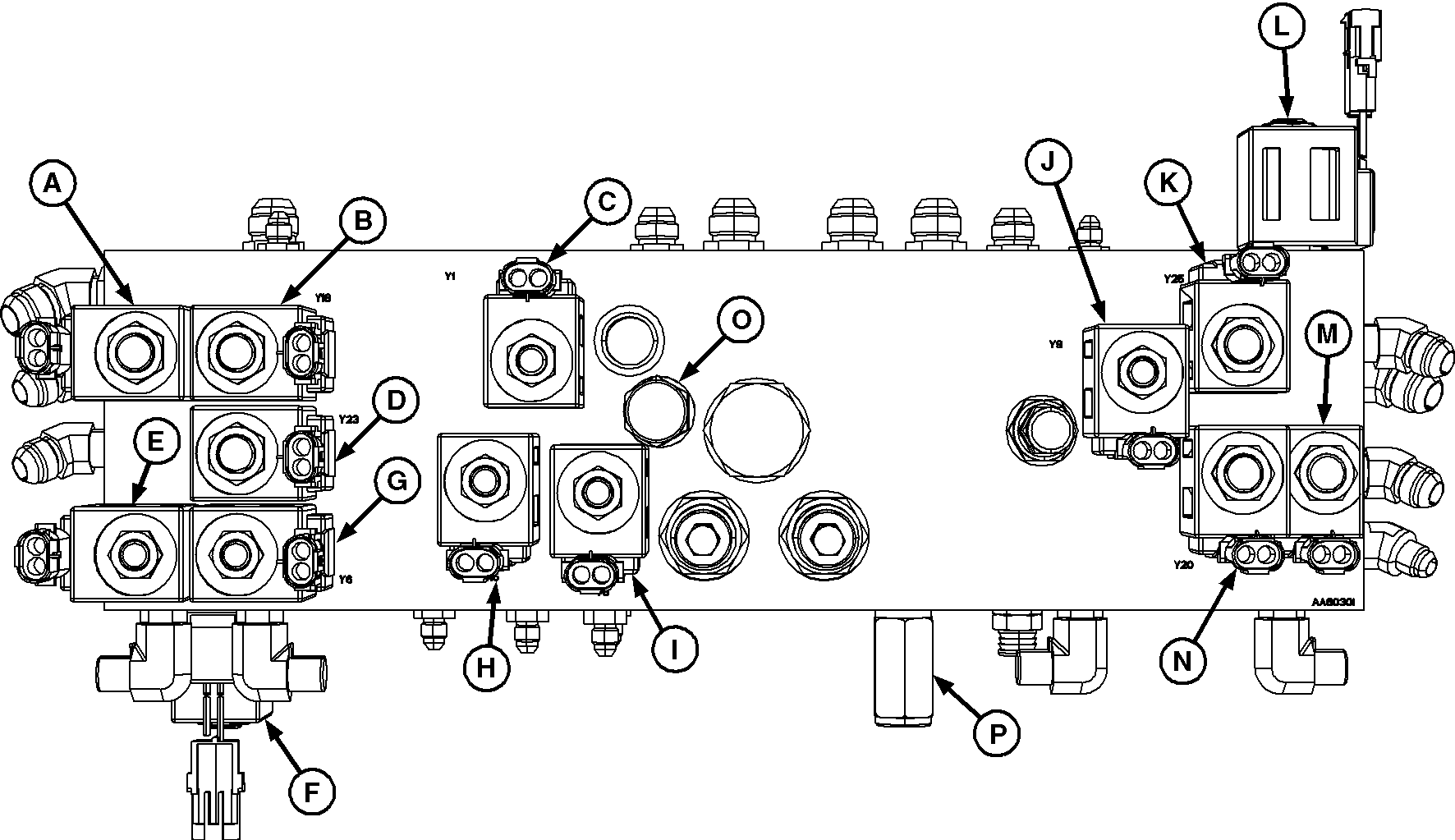

A-Y22 Solenoid and Valve, Left Wheel Cylinder-Piston Side
B-Y18 Solenoid and Valve, Left Wheel Cylinder-Piston Side
C-Y1 Solenoid and Valve, Center Wheel Cylinder-Piston Side
D-Y23 Solenoid and Valve, Left Wheel Cylinder-Rod Side
|
E-Y5 Solenoid and Valve, Left Marker-Rod Side
F-Y19 Solenoid and Valve, Left Wheel Cylinder-Rod Side
G-Y6 Solenoid and Valve, Right Marker-Rod Side
H-Y15 Solenoid and Valve, Rockshaft Cylinder-Piston Side
|
I-Y8 Solenoid and Valve, Fold Cylinder- Rod Side
J-Y9 Solenoid and Valve, Fold Cylinder-Piston Side
K-Y25 Solenoid and Valve, Right Wheel Cylinder-Rod Side
L-Y21 Solenoid and Valve, Right Wheel Cylinder-Rod Side
|
M-Y24 Solenoid and Valve, Right Wheel Cylinder-Piston Side
N-Y20 Solenoid and Valve, Right Wheel Cylinder-Piston Side
O-7B Left Center Rephase Valve
P-7A Right Center Rephase Valve
|
