Locking Openers In Raised Position-Split-Row

1. Unfold and raise machine.

2. Place a wooden block under fertilizer opener(s).

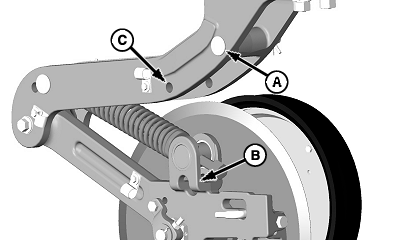

3. Slowly lower frame until pin (A) can be installed through opener casting (B) in locked position (C).

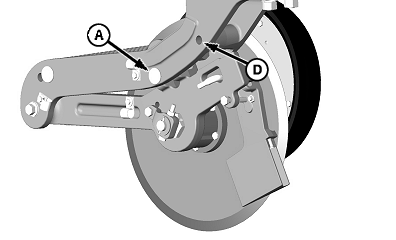

4. To unlock, lower opener on wooden block until pressure is relieved from pin (A), remove pin, raise machine and return pin to storage location (D).


A-Pin
B-Casting
C-Locked Position
D-Pin Storage Location

A56379
A56380

OUO6435,0001F9C -19-30JUN06-1/1
