Unit Mounted Row Cleaners

The function of the row cleaner is to sweep aside residue without moving soil.

When using pre-plant herbicide, adjust row cleaner depth to minimize soil disturbance, so cleaner will not reduce effectiveness of herbicide.

Two sets of height adjustment holes are provided. Row cleaner must be positioned so it clears parallel arm cross brace (D).

IMPORTANT: Do not use upper and lower holes (C) for height adjustment.

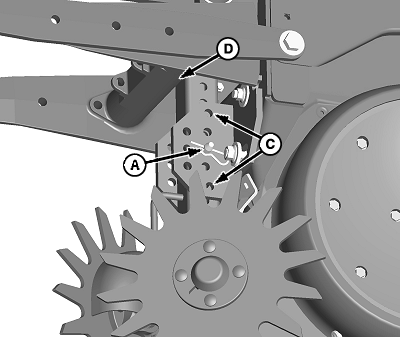

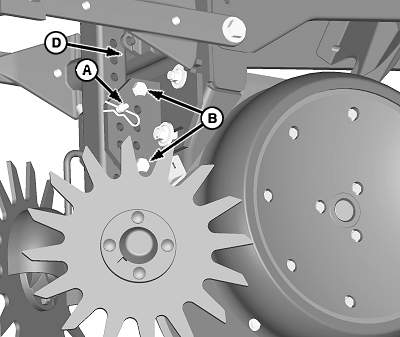

Short Parallel Arms: Use alignment pin (A) in any of the three adjustment holes (E). Install cap screws (B) in upper and lower holes (C).

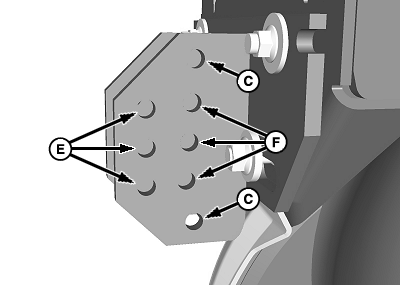

Long Parallel Arms: Use alignment pin (A) in any of the three adjustment holes (F). Do not use upper or lower holes (C). Cap screws (B) are not used in this configuration.

A-Pin
B-Cap Screws
C-Upper and Lower Holes
D-Cross Brace
E-Adjustment Holes, Short Arms
F-Adjustment Holes, Long Arms
