Row Cleaner for Unit Mounted Coulter

causym CAUTION: DO NOT use bracket (D) as a handle. Fingers can be seriously injured on sharp edge of coulter blade. Use a 1/2 in. breaker bar to adjust height.

1. Adjust row cleaner height as follows:

  • Remove spring locking pin (C).
  • Insert 1/2 in. breaker bar into square hole (A).
  • Lift breaker bar and remove pin (B)
  • Insert pin (B) in hole for desired height.
  • Install spring locking pin.

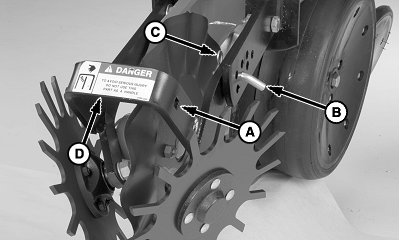

A-Square Hole
B-Pin
C-Spring Locking Pin
D-Bracket

A38394
A62625

AG,OUO6074,1290 -19-29MAY08-1/2

2. If row cleaner is NOT needed, raise row cleaner up and locate pin (A) to highest position.
