Cleaning Out CCS Tanks

IMPORTANT: When cleaning tank for certified seed, remove all seed from tank with stiff bristled 1372 mm (4.5 ft.) handle 203 mm (8 in.) wide broom.

IMPORTANT: Remove any buildup of seed treatment or talc before refilling tanks.

IMPORTANT: Make sure cleanout doors on CCS tanks are closed before folding machine or they can be damaged.

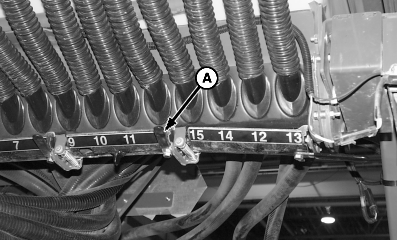

1. Open cleanout door (A) on bottom of CCS tank.

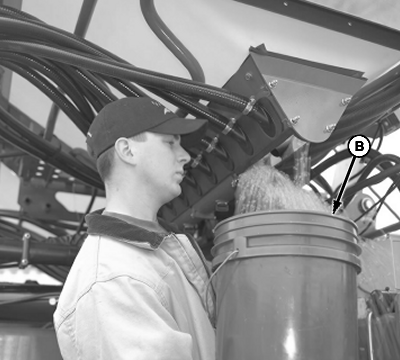

2. Place a bucket (B) or container under cleanout door to catch remaining seed from tank.

NOTE: Once cleanout doors (A) are open they cannot be closed completely until seed stops flowing.

3. Close cleanout door.

4. Repeat for all other cleanout doors.

A-Cleanout Door
B-Bucket

OUO1074,000140B -19-26JUN08-1/1
