Zeroing CCS Fan Pressure Gauge

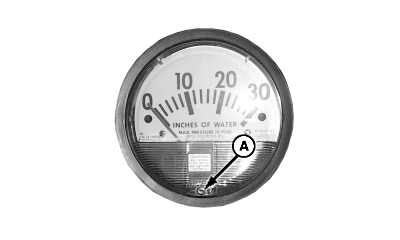

With CCS fan shut off and CCS gauge in a vertical position, disconnect CCS fan monitor line to vent gauge to atmosphere. Use the zero adjusting screw (A) to set the gauge pointer exactly on zero mark. Connect monitor line.


A-Zero Adjusting Screw

A51170

OUO1074,00014B4 -19-21JUL03-1/1
