Replace Double Disk Fertilizer Opener Bearing

1. Raise machine and install service locks on all lift cylinders.

2. Lower machine onto service locks.

3. Remove dust cap and nut (A).

4. Remove disk.

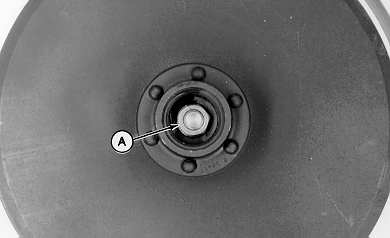

A-Nut

A44323

OUO6045,0000A22 -19-20SEP07-1/5

5. Grind off rivets (A).

6. Drive rivets out and remove spacer and bearing housing from blade.

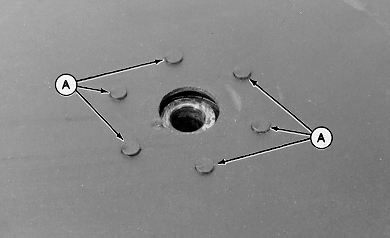

A-Rivet (6 used)

A44324

OUO6045,0000A22 -19-20SEP07-2/5

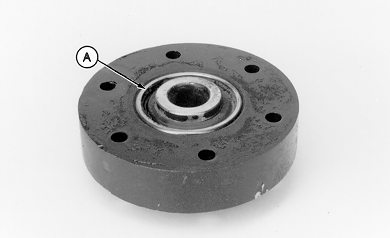

7. Remove bearing (A) from housing using a press.

8. Inspect housing, spacer, and disk blade. Replace parts as needed.


A-Bearing

A44325

OUO6045,0000A22 -19-20SEP07-3/5

IMPORTANT: Press only on outer race of bearing.

9. Install bearing in housing with flat surface (A) facing housing (B).

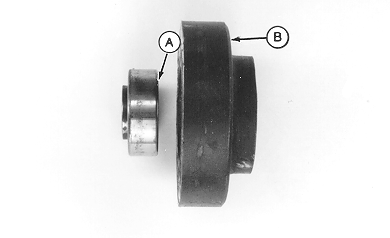

A-Bearing
B-Housing

A44326

OUO6045,0000A22 -19-20SEP07-4/5

10. Install housing (A) and spacer (B) on disk, while aligning rivet holes.

11. Install rivets (C).

12. Strike the end of rivets (D) with a hammer until rounded over to secure hub and spacer to disk.

NOTE: See DISK ADJUSTMENT in this section, before installing disk on machine.

13. Install disk on machine. (See INSPECT AND ADJUST OPENER BLADES in this section.)

14. Raise machine and remove service locks from lift cylinders.

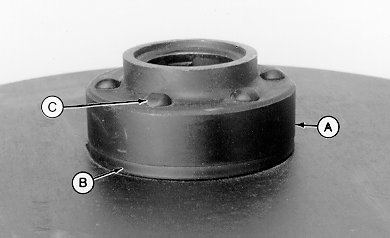

A-Housing
B-Spacer
C-Rivet (6 used)

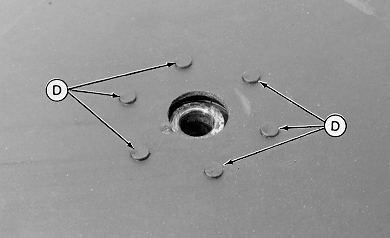

D-Rounded End of Rivet

A44327
A44328
