Setting Mechanical Selective Control Valve for 7000 and 7020 Series Tractors

IMPORTANT: If vacuum level cannot be fine tuned adequately with the 200 Series SCV, the planter flow control valve can be used to adjust vacuum. The tractor flow control valve must be fully open when using planter control valve.

Set SCV control knobs (A) to motor position (continuous detent).

Flow control knob (B) is used to control vacuum level.

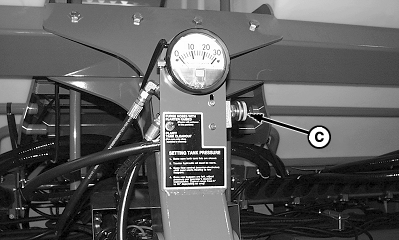

CCS flow control valve (C) is used to control tank pressure.

SeedStar™ 2 monitor system controls variable rate drive.

A-SCV Control Knob
B-Flow control Knob
C-CCS Flow Control Valve

OUO6074,0000808 -19-30JUN08-1/1
