The marker disk creates a furrow in the soil. This adjustment changes the size of furrow.

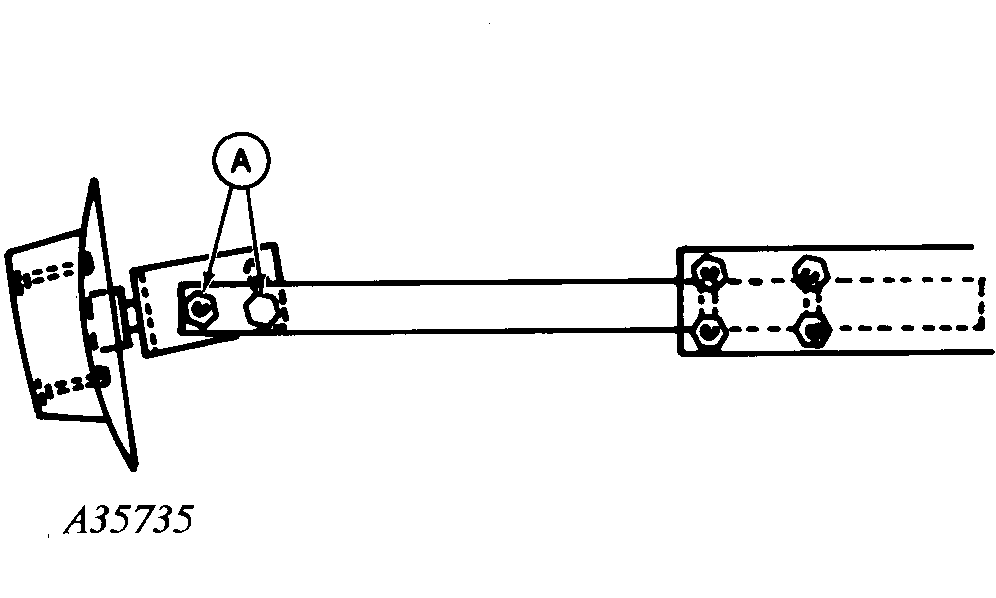

Loosen nuts on cap screws (A), adjust disk angle and tighten nuts to specification.
Specification
A-Nut
OUO6074,0000813 -19-05NOV03-1/1
