Operating CCS System When Planting Sorghum, Small Popcorn and Cotton

IMPORTANT: Remove nozzle inserts (A) before switching to crop with larger seed. Larger seed will not come out of tanks with nozzle inserts installed. Tanks will then have to be drained, nozzle inserts removed, and refilled.

NOTE: See SETTING CCS TANK PRESSURE for application requirements.

1. Install nozzle inserts (A) over all nozzles prior to filling tank.

2. Remove elbow (B) with small holes from mini hoppers.

3. Install elbow (C) with slotted holes in mini hoppers.

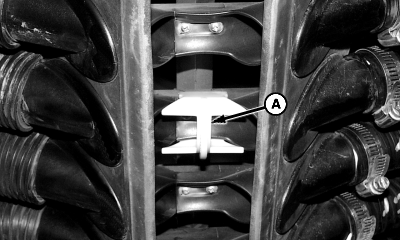

A-Nozzle Inserts (A73214)

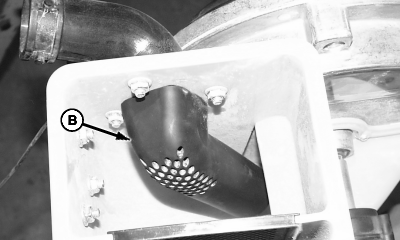

B-Elbow (A75164)

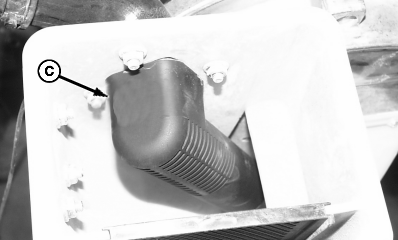

C-Elbow (Sorghum) (A75165)

OUO6074,0000878 -19-13FEB06-1/1
