Lubrication-Every 50 Hours
A47238

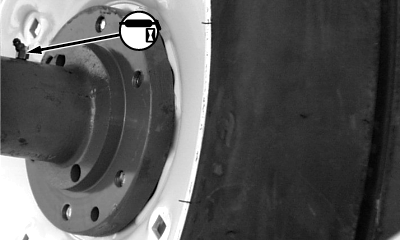

Wing Wheel Bearings

OUO6074,0000888 -19-26JUN08-1/4

Row cleaner has sealed bearings from factory and lubrication is not required. If a non-sealed bearing is installed, use this lubrication interval.

A47899

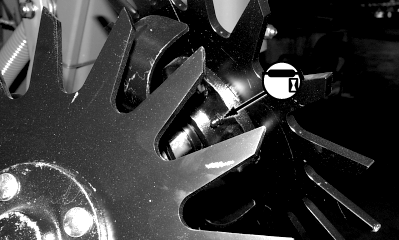

Row Cleaner

OUO6074,0000888 -19-26JUN08-2/4

NOTE: Oil lower spring pivot pins every 50 hours. Oil will prevent top of pin from rusting.

A51069

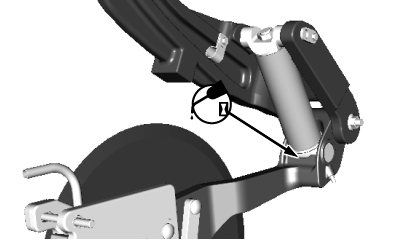

Single-Disk Fertilizer Opener (If Equipped)

OUO6074,0000888 -19-26JUN08-3/4

A52398

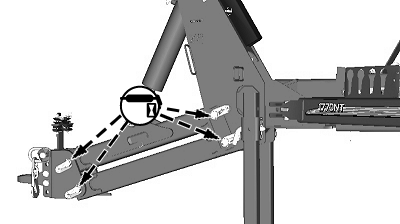

Drawbar Hitch (If Equipped)

OUO6074,0000888 -19-26JUN08-4/4
