Adjusting Frame Height-Wing Frame

IMPORTANT: Perform all frame height adjustments with machine on level ground.

Center frame wheel pairs must be adjusted to the same settings.

NOTE: Adjust frame 510-560 mm (20-22 in.) above the ground. Soil conditions can affect frame height. Wing wheels can be adjusted differently than the center frame wheels due to varying attachments and frame configurations.

1. Fold machine. See FOLDING MACHINE in Transporting section.

2. Remove wheel hub bolts and position wheel hubs in location (A) for normal conditions or location (B) to raise frame two inches.

3. Tighten wheel hub cap screws to specification after making adjustments.

Specification

Wing Wheel Cap Screws -Torque 447 N·m (330 lb-ft)

4. Repeat for adjacent wheels.

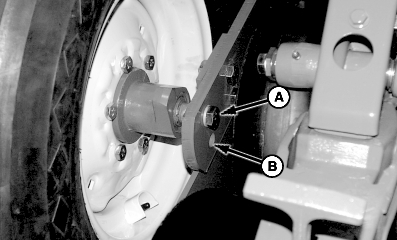

A47889

Wing Wheel Shown


A-Wheel Hub Location (Normal Conditions)
B-Wheel Hub Location (Raise Frame)

OUO6074,000089C -19-25JUN08-1/1
