Link Lengths (Two Point Hitch)

IMPORTANT: For added safety, always use a Quik Tach™ to make attaching and detaching a one-person operation.

1. Set link lengths (A) so planter frame hitch tube is level when planter and three point hitch are fully lowered. Transport clearance is maximized.

2. Adjust the center link (B) until Quik Tach™ (C) is vertical when in planting position.

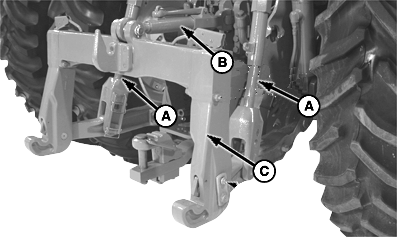

A51082

8000 Series Tractors Shown


A-Link Lengths
B-Center Link
C-Quik Tach

OUO6074,000097C -19-30JUN08-1/1
