Install and Remove Non-Standard Seed Tubes

NOTE: Place harness connector inside planting unit at same time as seed tube.

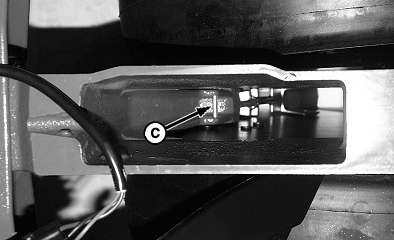

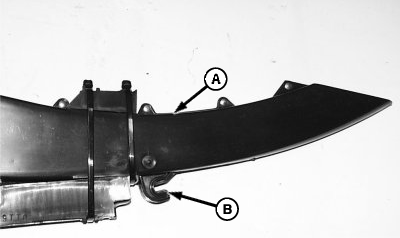

2. Insert seed tube (A) into planting unit so the hook (B) locks on alignment pin (C).

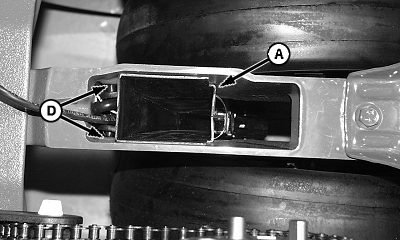

3. Position seed tube so tabs (D) lock into holes.

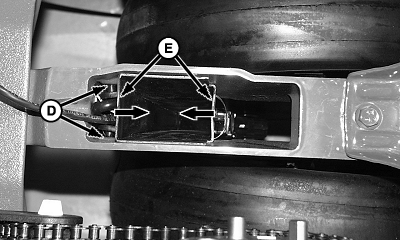

4. To remove seed tube, squeeze front and rear (E) of tube with fingers until tabs (D) release from casting and pull upward.

A-Seed Tube
B-Hook
C-Pin
D-Tabs
E-Front and Rear
