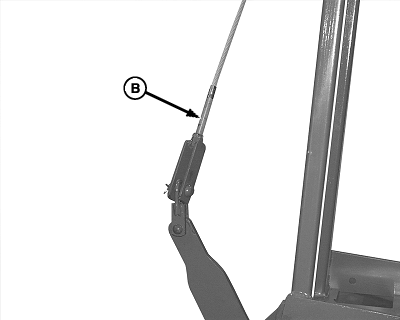

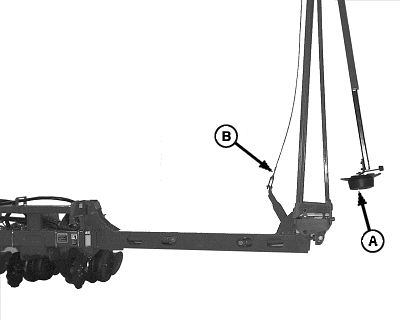

Adjusting Marker Cable-24 RowIMPORTANT: Marker disk and marker length should be adjusted before cable length is set. 1. Lower markers and watch to see if disk (A) contacts the ground during swingout. Disk should slightly clear ground. If cable is too short and disk is far above the ground during swingout, float range will be affected. 2. If disk contacts ground, adjust cable by shortening threaded rod (B). 3. If disk is far above ground, adjust cable by lengthening threaded rod.
|
|
OUO6074,0000E6B -19-26JAN06-1/1 |
