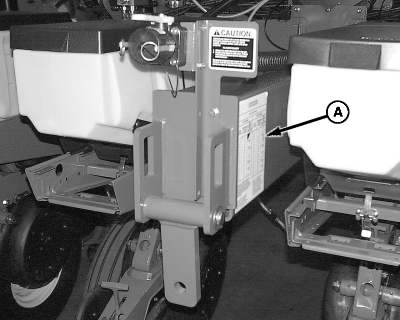

Liquid Fertilizer Rate ChartsThe rate charts (A) are affected by many factors such as wheel slippage and material used. Use charts only as a guide. Perform rate checks at each opener and adjust pump accordingly.
|
|
OUO6074,0000E6E -19-26JUN08-1/5 |
| 1700 SERIES PLANTER FERTILIZER MATRIX - TO ENSURE ROW TO ROW RATE CONSISTENCY FOR LIQUID FERTILIZER ATTACHMENT WITH PISTON PUMP | ||||
|---|---|---|---|---|
| DELIVERY SYSTEM | FRAME MOUNTED SINGLE DISK OPENER | UNIT MOUNTED DOUBLE DISK OPENER | SINGLE DISK UNIT MOUNTED INJECTION OPENER | LESS OPENERS |
| LOW PRESSURE FLOW DIVIDER DELIVERY SYSTEM | NO ORIFICE OR NOZZLE REQUIRED. STANDARD 6.9 kPa (0.07 bar) (1 psi) CHECK VALVES REQUIRED FOR APPLICATION RATES OF 94 L/ha (10 gpa) OR LESS. SHORTEST DELIVERY HOSE LINE MUST NOT BE ANY SHORTER THAN 1/2 THE LENGTH OF THE LONGEST HOSE. |
NO ORIFICE OR NOZZLE REQUIRED. STANDARD 6.9 kPa (0.07 bar) (1 psi) CHECK VALVES REQUIRED FOR APPLICATION RATES OF 94 L/ha (10 gpa) OR LESS. SHORTEST DELIVERY HOSE LINE MUST NOT BE ANY SHORTER THAN 1/2 THE LENGTH OF THE LONGEST HOSE. |
NOT AVAILABLE | LOW PRESSURE SYSTEMS NOT COMPATIBLE WITH SYSTEMS USING ORIFICES OR NOZZLES; NO ORIFICE OR NOZZLE REQUIRED. STANDARD 6.9 kPa (0.07 bar) (1 psi) CHECK VALVES REQUIRED FOR APPLICATION RATES OF 94 L/ha (10 gpa) OR LESS. SHORTEST DELIVERY HOSE LINE MUST NOT BE ANY SHORTER THAN 1/2 THE LENGTH OF THE LONGEST HOSE. |
| HIGH PRESSURE CENTRAL MANIFOLD DELIVERY SYSTEM | NOT AVAILABLE | NOT AVAILABLE | PROPER NOZZLE REQUIRED FOR RATE AND TRAVEL SPEED - PRESSURE TO BE BETWEEN 138 kPa (1.4 bar) (20 psi) AND 483 kPa (5 bar) (70 psi). NO ORIFICES REQUIRED. |
HIGH PRESSURE SYSTEM SHOULD BE USED WITH OPENERS OR DELIVERY SYSTEMS REQUIRING ORIFICES OR NOZZLES. PROPER ORIFICE OR NOZZLE REQUIRED FOR RATE AND TRAVEL SPEED. |
|
FIXED AND VARIABLE RATE JOHN BLUE™ 12 ROW AND 16 ROW MACHINES
Orifice and nozzle columns are the same for both high pressure and low pressure systems. |
OUO6074,0000E6E -19-26JUN08-2/5 |
| LIQUID FERTILIZER APPLICATION RATE 12 ROW and 16 ROW MACHINES FIXED AND VARIABLE RATE PUMP |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| 76 cm (30 in.) ROW SPACING | |||||||||
| LOW RANGE | HIGH RANGE | ||||||||
| Pump Setting | Approximate Liter Per Hectare (GPA) | Travel Speed in km/h (mph) | Pump Setting | Approximate Liter Per Hectare (GPA) | Travel Speed in km/h (mph) | ||||
| 8.0 (5) | 9.6 (6) | 11.2 (7) | 8.0 (5) | 9.6 (6) | 11.2 (7) | ||||
| Orifice Number (Nozzle Number) |
Orifice Number (Nozzle Number) |
||||||||
| 3.0 | 22.45 (2.4) | 31 (1.5) | 2.0 | 73.90 (7.9) | 43 (2.5) | 43 (2.5) | 43 (2.5) | ||
| 3.5 | 26.19 (2.8) | 31 (1.5) | 31 (1.5) | 2.5 | 90.73 (9.7) | 43 (2.5) | 43 (2.5) | 59 (5) | |
| 4.0 | 29.93 (3.2) | 31 (1.5) | 31 (1.5) | 31 (1.5) | 3.0 | 108.51 (11.6) | 43 (2.5) | 59 (5) | 59 (5) |
| 4.5 | 33.67 (3.6) | 31 (1.5) | 31 (1.5) | 31 (1.5) | 3.5 | 125.34 (13.4) | 59 (5) | 59 (5) | 59 (5) |
| 5.0 | 37.42 (4.0) | 31 (1.5) | 31 (1.5) | 31 (1.5) | 4.0 | 143.12 (15.3) | 59 (5) | 59 (5) | 59 (5) |
| 5.5 | 41.16 (4.4) | 31 (1.5) | 31 (1.5) | 31 (1.5) | 4.5 | 159.95 (17.1) | 59 (5) | 59 (5) | 78 (8) |
| 6.0 | 43.96 (4.7) | 31 (1.5) | 31 (1.5) | 43 (2.5) | 5.0 | 177.73 (19.0) | 59 (5) | 78 (8) | 78 (8) |
| 6.5 | 47.71 (5.1) | 31 (1.5) | 31 (1.5) | 43 (2.5) | 5.5 | 195.50 (20.9) | 78 (8) | 78 (8) | 78 (8) |
| 7.0 | 51.45 (5.5) | 31 (1.5) | 43 (2.5) | 43 (2.5) | 6.0 | 212.33 (22.7) | 78 (8) | 78 (8) | 78 (8) |
| 7.5 | 55.19 (5.9) | 31 (1.5) | 43 (2.5) | 43 (2.5) | 6.5 | 230.11 (24.6) | 78 (8) | 78 (8) | 78 (8) |
| 8.0 | 58.93 (6.3) | 43 (2.5) | 43 (2.5) | 43 (2.5) | 7.0 | 246.94 (26.4) | 78 (8) | 78 (8) | 78 (8) |
| 8.5 | 62.67 (6.7) | 43 (2.5) | 43 (2.5) | 43 (2.5) | 7.5 | 264.72 (28.3) | 78 (8) | 78 (8) | 95 (12) |
| 9.0 | 66.41 (7.1) | 43 (2.5) | 43 (2.5) | 43 (2.5) | 8.0 | 282.49 (30.2) | 78 (8) | 95 (12) | 95 (12) |
| 9.5 | 70.15 (7.5) | 43 (2.5) | 43 (2.5) | 43 (2.5) | 8.5 | 299.33 (32.0) | 95 (12) | 95 (12) | 95 (12) |
| 10.0 | 73.90 (7.9) | 43 (2.5) | 43 (2.5) | 43 (2.5) | 9.0 | 317.10 (33.9) | 95 (12) | 95 (12) | 95 (12) |
| 9.5 | 333.94 (35.7) | 95 (12) | 95 (12) | 95 (12) | |||||
| 10.0 | 351.71 (37.6) | 95 (12) | 95 (12) | 95 (12) | |||||
| Note: The rate charts are affected by many factors including wheel slippage and material used, therefore this chart should only be used as a guide. For information on using fertilizer rate charts, see "HOW TO USE LIQUID FERTILIZER RATE CHARTS" | |||||||||
| Always perform a field check to verify desired rate. Refer to "CHECKING FERTILIZER RATES" for instructions on how to check fertilizer rates. |
|||||||||
|
VARIABLE RATE JOHN BLUE™ 24 ROW MACHINE
Only available with low pressure systems from the factory. |
OUO6074,0000E6E -19-26JUN08-3/5 |
| LIQUID FERTILIZER APPLICATION RATE 24 ROW MACHINE ONLY VARIABLE RATE PISTON PUMP |
|||
|---|---|---|---|
| 76 cm (30 in.) ROW SPACING | |||
| LOW RANGE | HIGH RANGE | ||
| Pump Setting | Approximate Liters Per Hectare (GPA) |
Pump Setting | Approximate Liters Per Hectare(GPA) |
| 2.0 | 25.26 (2.7) | 2.0 | 92.60 (9.9) |
| 2.5 | 31.80 (3.4) | 2.5 | 114.12 (12.2) |
| 3.0 | 37.42 (4.0) | 3.0 | 135.63 (14.5) |
| 3.5 | 43.96 (4.7) | 3.5 | 158.08 (16.9) |
| 4.0 | 49.58 (5.3) | 4.0 | 179.60 (19.2) |
| 4.5 | 56.12 (6.0) | 4.5 | 202.05 (21.6) |
| 5.0 | 61.74 (6.6) | 5.0 | 223.56 (23.9) |
| 5.5 | 68.28 (7.3) | 5.5 | 245.07 (26.2) |
| 6.0 | 73.90 (7.9) | 6.0 | 267.52 (28.6) |
| 6.5 | 80.44 (8.6) | 6.5 | 289.04 (30.9) |
| 7.0 | 86.06 (9.2) | 7.0 | 310.55 (33.2) |
| 7.5 | 92.60 (9.9) | 7.5 | 333.00 (35.6) |
| 8.0 | 98.22 (10.5) | 8.0 | 354.52 (37.9) |
| 8.5 | 104.76 (11.2) | 8.5 | 376.96 (40.3) |
| 9.0 | 110.38 (11.8) | 9.0 | 398.48 (42.6) |
| 9.5 | 115.99 (12.4) | 9.5 | 419.99 (44.9) |
| 10.0 | 122.54 (13.1) | 10.0 | 442.44 (47.3) |
| Note: The rate charts are affected by many factors including wheel slippage and material used, therefore this chart should only be used as a guide. For information on using fertilizer rate charts, see "HOW TO USE LIQUID FERTILIZER RATE CHARTS" | |||
| To be certain you are getting the desired rate, you must do a field check. Refer to "CHECKING FERTILIZER RATES" for instructions on how to check fertilizer rates. SEE OPERATORS MANUAL FOR FURTHER INFORMATION CONCERNING OPERATION AND MAINTENANCE OF THE PISTON PUMP SYSTEM. |
|||
OUO6074,0000E6E -19-26JUN08-4/5 |
|
FIXED RATE DEMCO™ 24 ROW MACHINE
|
| LIQUID FERTILIZER APPLICATION RATE 24 ROW MACHINE ONLY DOUBLE PISTON PUMP |
|||
|---|---|---|---|
| 76 cm (30 in.) ROW SPACING | |||
| LOW RANGE | HIGH RANGE | ||
| Pump Setting | Approximate Liters Per Hectare(GPA) |
Pump Setting | Approximate Liters Per Hectare(GPA) |
| 2.0 | 29.93 (3.2) | 2.0 | 48.64 (5.2) |
| 2.5 | 37.42 (4.0) | 2.5 | 59.87 (6.4) |
| 3.0 | 45.83 (4.9) | 3.0 | 72.03 (7.7) |
| 3.5 | 53.32 (5.7) | 3.5 | 84.19 (9.0) |
| 4.0 | 60.80 (6.5) | 4.0 | 96.35 (10.3) |
| 4.5 | 68.28 (7.3) | 4.5 | 108.51 (11.6) |
| 5.0 | 75.77 (8.1) | 5.0 | 120.67 (12.9) |
| 5.5 | 83.25 (8.9) | 5.5 | 132.83 (14.2) |
| 6.0 | 90.73 (9.7) | 6.0 | 144.99 (15.5) |
| 6.5 | 98.22 (10.5) | 6.5 | 157.15 (16.8) |
| 7.0 | 105.70 (11.3) | 7.0 | 169.31 (18.1) |
| 7.5 | 113.18 (12.1) | 7.5 | 180.53 (19.3) |
| 8.0 | 120.67 (12.9) | 8.0 | 192.69 (20.6) |
| 8.5 | 128.15 (13.7) | 8.5 | 204.85 (21.9) |
| 9.0 | 136.57 (14.6) | 9.0 | 217.01 (23.2) |
| 9.5 | 144.05 (15.4) | 9.5 | 229.17 (24.5) |
| 10.0 | 151.53 (16.2) | 10.0 | 241.33 (25.8) |
| 10.5 | 159.02 (17.0) | 10.5 | 253.49 (27.1) |
| 11.0 | 166.50 (17.8) | 11.0 | 265.65 (28.4) |
| 11.5 | 173.98 (18.6) | 11.5 | 277.81 (29.7) |
| 12.0 | 181.47 (19.4) | 12.0 | 289.97 (31.0) |
| Note: The rate charts are affected by many factors including wheel slippage and material used, therefore this chart should only be used as a guide. For information on using fertilizer rate charts, see "HOW TO USE LIQUID FERTILIZER RATE CHARTS" | |||
| To be certain you are getting the desired rate, you must do a field check. Refer to "CHECKING FERTILIZER RATES" for instructions on how to check fertilizer rates. SEE OPERATORS MANUAL FOR FURTHER INFORMATION CONCERNING OPERATION AND MAINTENANCE OF THE PISTON PUMP SYSTEM. |
|||
