Ballast Attachment-12 and 16 Row

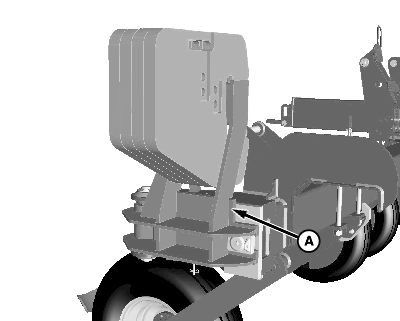

Ballast mounting bracket (A), located in place of markers, accepts tractor weights.

Place weights on bracket as required.

NOTE: A full set of weights on ballast bracket is equal to marker weight in raised position.

A-Bracket

OUO6074,0000F1B -19-30JUN06-1/1
