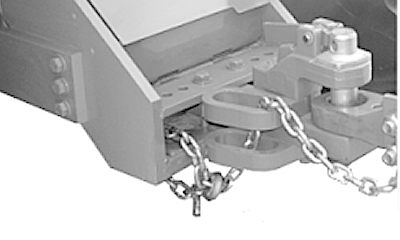

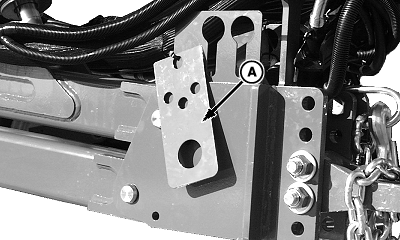

Attach Machine to Tractor (Drawbar Hitch)Install protector plate on tractors attached to 24 Row machines only. Remove protector plate (A) from planter.
|
|
OUO6435,0001BAC -19-25JUN08-1/8 |
|

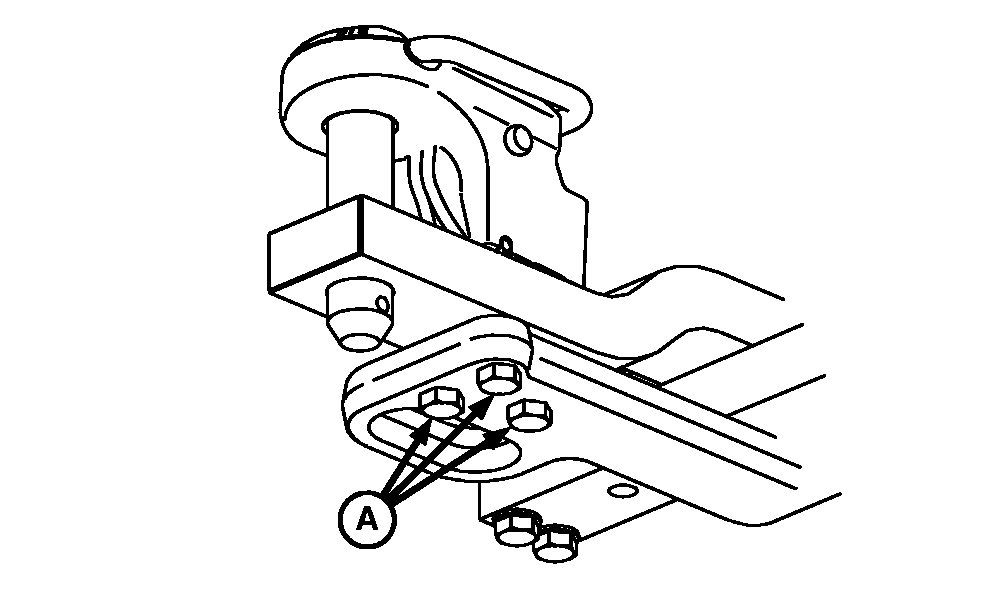

8000 Series Tractors

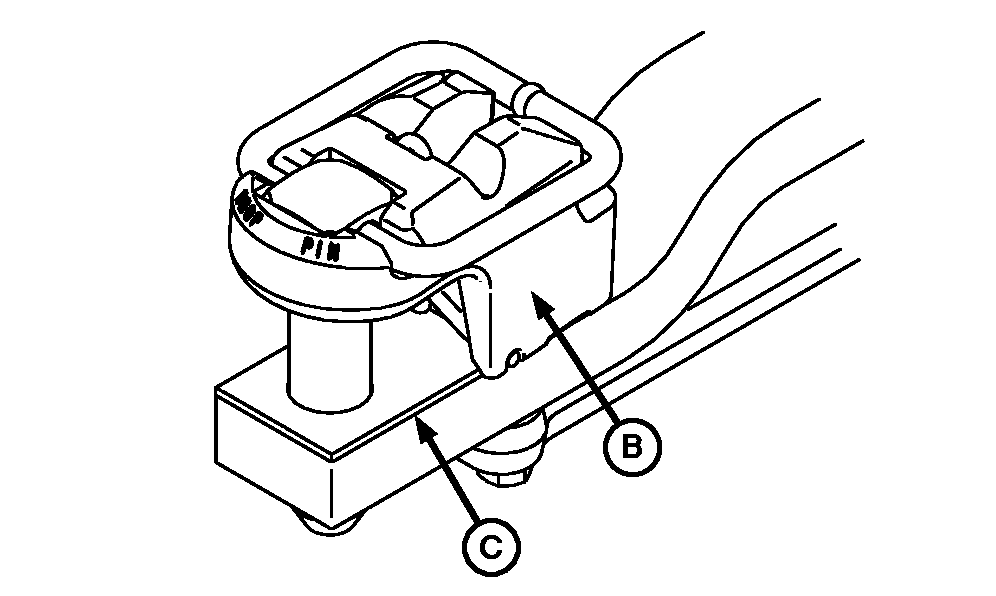

Remove cap screws (A) and hitch retainer (B) from tractor. Install protector plate (C) and hitch retainer onto tractor and tighten hitch retainer cap screws (A) to specification. Specification
NOTE: Check tractor operator's manual for proper torque specification if tractor model is not shown.
|
|
OUO6435,0001BAC -19-25JUN08-2/8 |
|

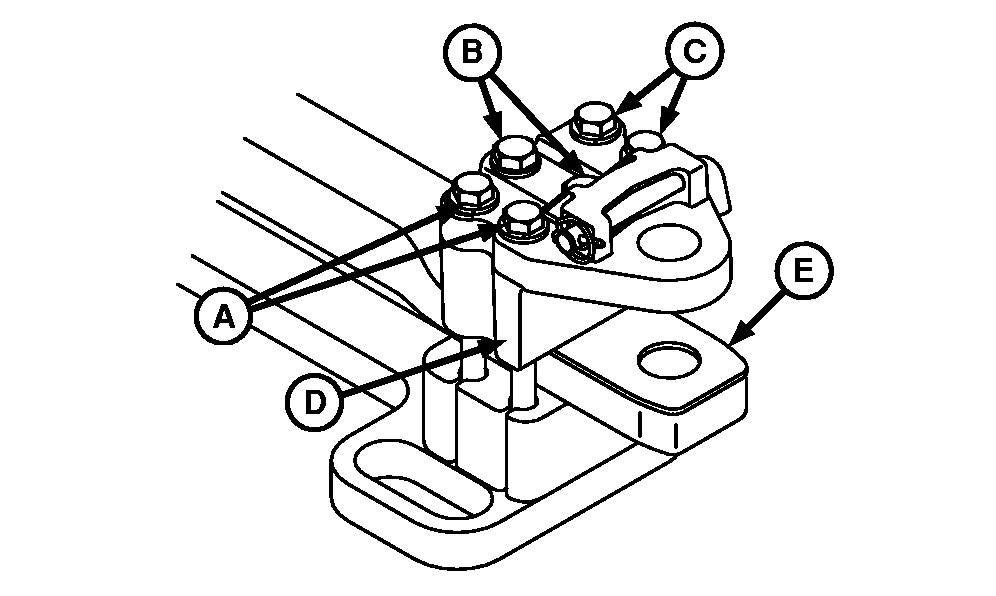

9000 Series Tractors
Remove cap screws (A), (B), (C) and hitch retainer (D) from tractor. Install protector plate (E) and hitch retainer onto tractor and tighten hitch retainer cap screws to specification. Specification
NOTE: Check tractor operator's manual for proper torque specification if tractor model is not shown. |
|
OUO6435,0001BAC -19-25JUN08-3/8 |
|

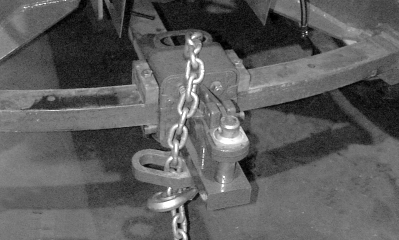

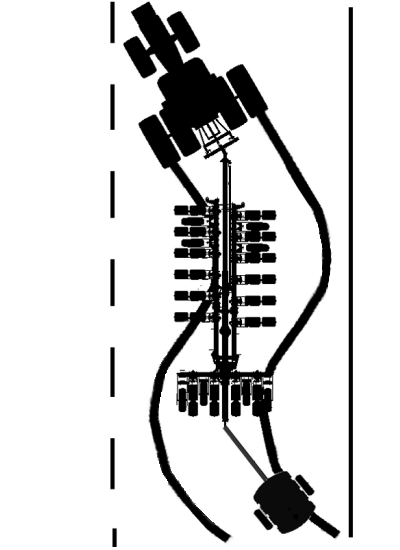

Attach a properly sized safety tow chain between tractor, machine, and any towed load. Do not transport on roadways with machine more than one-half full. Do not road transport a towed load (such as a fertilizer tank) unless it is empty. Ensure that proper drawbar supports are installed on tractor. Never exceed 13 600 kg (30 000 lb.) of towed weight behind the machine while in the field. Transport only with a properly sized tractor. Refer to CALCULATE MINIMUM TRACTOR WEIGHT FOR SAFE TRANSPORT in Prepare Tractor section. Do not transport on a roadway unless the towed load has two functioning flashing warning lights. Attach an appropriate lighting harness to the 7-pin connector. Contact your John Deere dealer for accessory lights and lighting harnesses. Ensure that towed load has an appropriate SMV emblem and rear reflectors. Ensure that the reflective material and the SMV are clean and visible. When towing on a roadway, refer to TOW LOADS SAFELY in the Safety section. NOTE: It could be necessary to connect hydraulic hoses and move hitch into position. 1. Back tractor to hitch. |
|
CAUTION:
Avoid serious injury or death resulting from loss of control or rear end collision during transport of the implement and any towed load behind the implement.
OUO6435,0001BAC -19-25JUN08-4/8 |
|

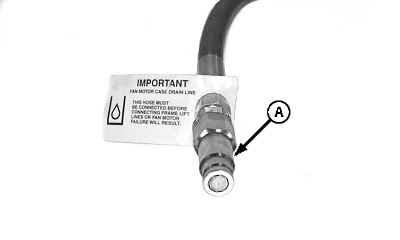

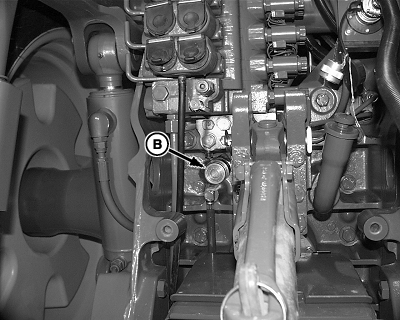

IMPORTANT: Fan motor case drain hose MUST be attached to low-pressure drain connection PRIOR to inlet and return hoses being connected. Case drain MUST have LESS THAN 172 kPa (1.72 bar) (25 psi) or fan motor damage occurs. IMPORTANT: Install a Low-Pressure Drain Line Kit when towing tractor is not equipped. IMPORTANT: DO NOT USE other ports at the rear of the tractor which are similar in appearance and size to low-pressure drain port. Due to high back-pressure (over 172 kPa 1.72 bar] [25 psi]), drain connection to these ports RESULTS in fan motor damage. 2. Attach case drain hose (A) to tractor low-pressure drain coupler (B).
|
|
OUO6435,0001BAC -19-25JUN08-5/8 |
|

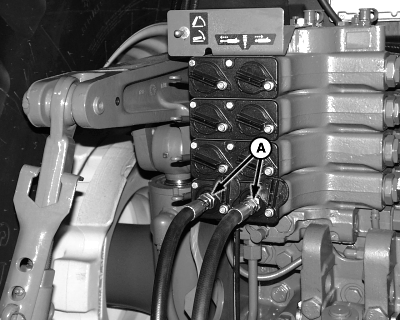

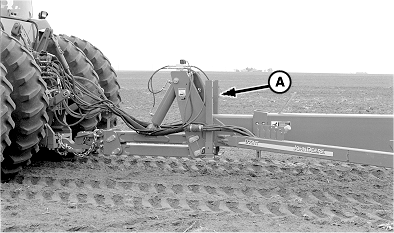

IMPORTANT: Check tractor hydraulic oil level after filling cylinders with oil for the first time. IMPORTANT: It is important to rephase hydraulic lift system before operating any other functions. NOTE: When machine is equipped with drawbar hitch and automatic markers, markers and hitch use the same hoses. 3. Attach drawbar hitch hoses (A) to tractor. 4. If necessary, raise or lower hitch to align with tractor drawbar. To raise or lower drawbar hitch, proceed as follows: a. Place DRAWBAR-HITCH control console switch in HITCH position. b. Activate marker SCV to raise or lower drawbar hitch. c. When hitch is in proper position, place MARKER-HITCH switch in MARKER position. |
|
OUO6435,0001BAC -19-25JUN08-6/8 |
|
|
|
5.

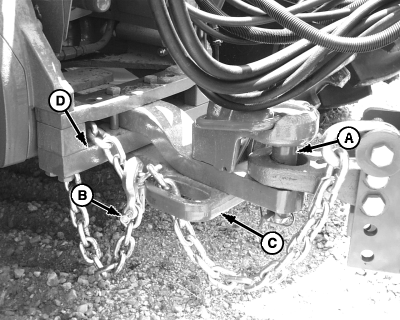

Install drawbar pin (A) and secure.

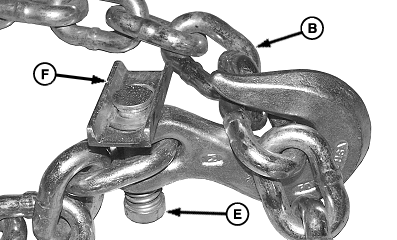

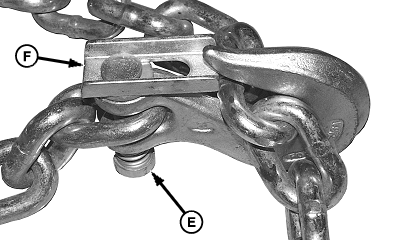

6. Install safety chain (B) through loop (C) and drawbar support (D). 7. Press spring latch (E) and rotate safety lock (F) open. 8. Attach hook to chain between drawbar support (D) and loop (C). 9. Press spring latch (E) and rotate safety lock (F) into closed position.
|
|
OUO6435,0001BAC -19-25JUN08-7/8 |
|
10.
Raise hitch to remove weight from hitch stands (A).
11. Raise and secure hitch stands as shown.
|
|
OUO6435,0001BAC -19-25JUN08-8/8 |
