To adjust marker do the following:
-
Lower marker.
-

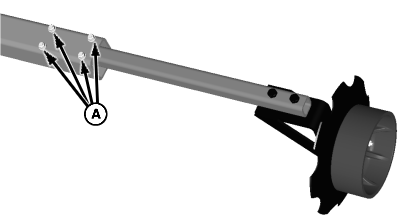

Loosen lock nuts on U-bolts (A) on marker.
-
Adjust to length shown in table.
-
Dimension (B) is measured from the center line of the planting unit to the marker disk.
-
Tighten lock nuts on U-bolts securely.
-
Dimension is approximate and must be checked in the field.
|
| Machine |
Row Spacing |
Dimension "B" |
| 12-Row |
762 mm (30 in.) |
4953 mm (195 in.) |
| 16-Row |
762 mm (30 in.) |
6477 mm (255 in.) |
Tighten lock nuts (A) to specification.
Specification
|
Lock Nut
-Torque
|
95 N·m
|
(70 lb-ft)
|
|
