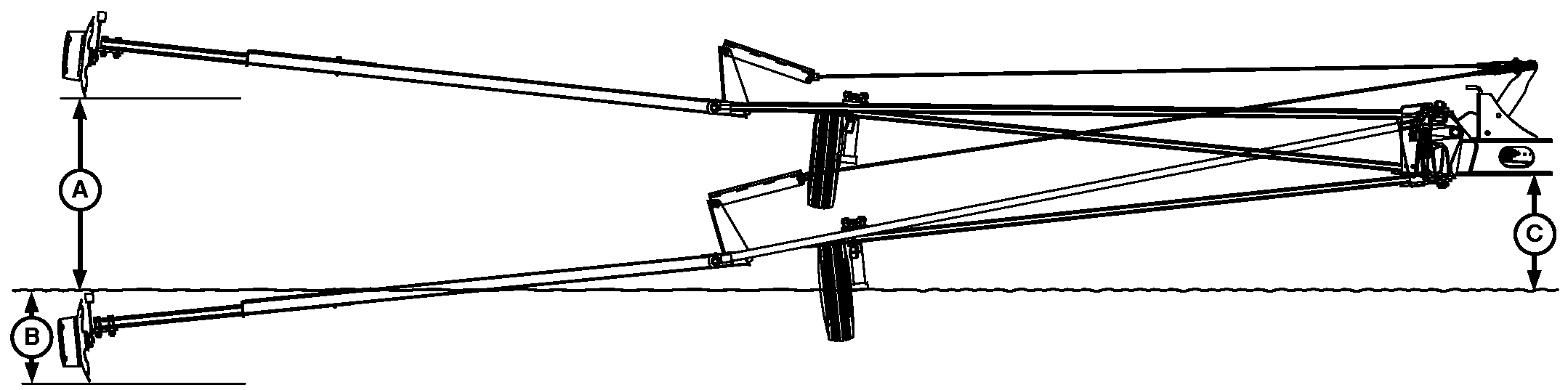

Marker Float Range-24 Row

A53577


A-Dimension A

B-Dimension B

C-Dimension C



The marker has an approximate float range (see table) which cannot be exceeded.

Exceeding this float range can result in damage to the marker inner arm.

If this range must be exceeded, raise the marker by operating the marker SCV lever.

Machine Row Spacing Dimension "A" Dimension "B" Dimension "C"
24-Row 76 cm (30 in.) 11° 5° 56 cm (22 in.)a
aApproximate distance from ground.



OUO6435,0001ED3 -19-19JUN08-1/1
