Lubrication-Every 10 Hours or Daily-12/16 Row

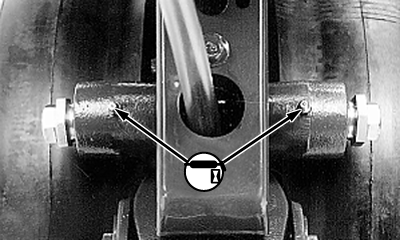

12R/16R Gauge Wheels
|

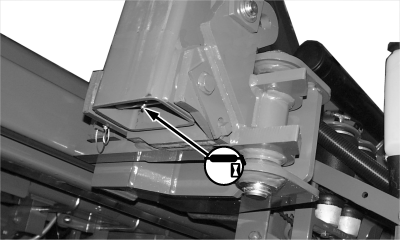

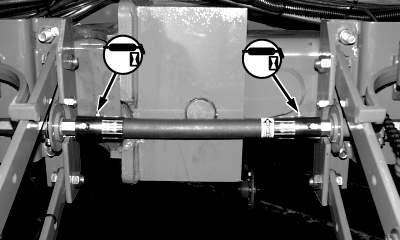

12R/16R Hitch Pivot
|

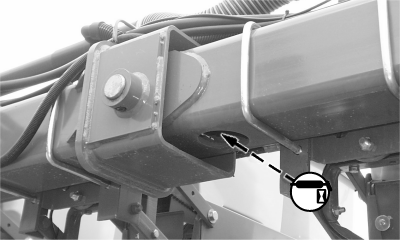

12R/16R Hitch Pivot
|

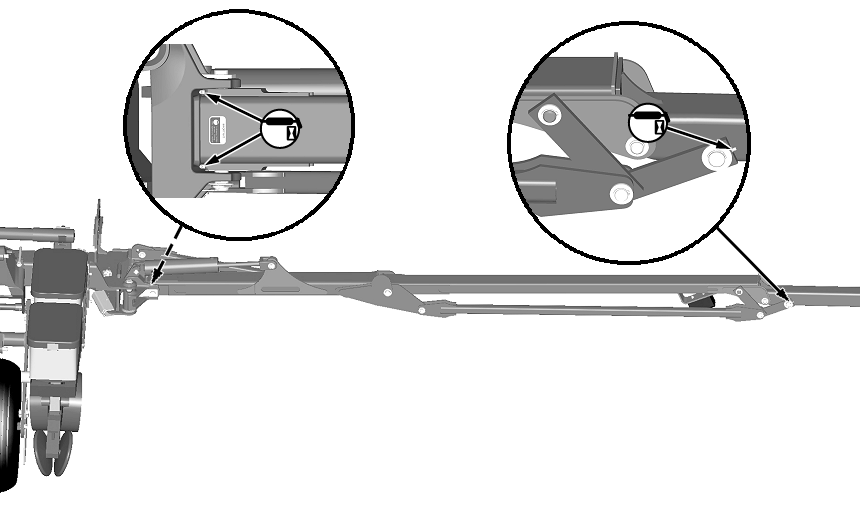

12R/16R Wing Flex Joints
|

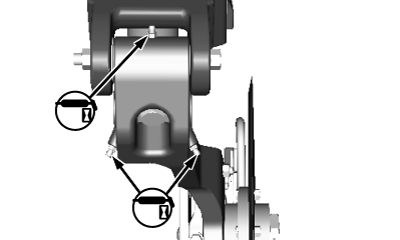

Marker Pivot Pin
|

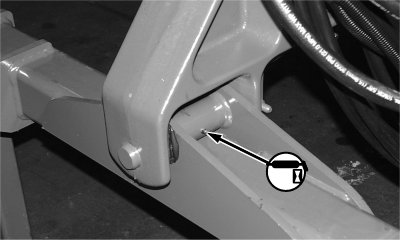

12R/16R Frame Mounted Fertilizer Opener (If Equipped)
|

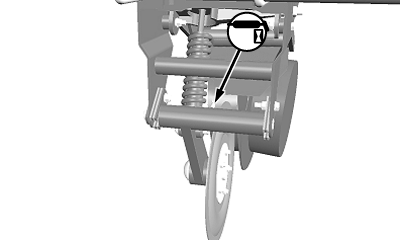

12R/16R Frame Mounted Coulter (If Equipped)
|

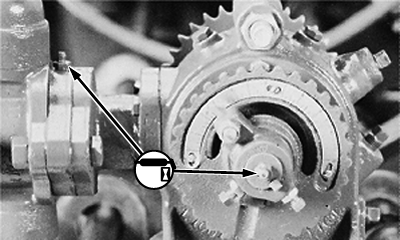

12R/16R Flex Shaft
|
|
|
OUO6435,0001EE2 -19-11JUN08-1/4
|

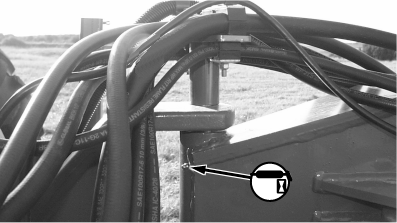

12R/16R Marker Pivot and Control Strap
|
Grease marker pivots and control straps with marker extended and blade slightly above ground. Marker will still be slightly in the air.
|
|
|
|
OUO6435,0001EE2 -19-11JUN08-2/4
|
|
|
12R/16R Piston Pump Shafts (If Equipped)
|
|
|
OUO6435,0001EE2 -19-11JUN08-3/4
|
|
Fill crankcase of pump with TY6296 SAE 80/90 W EP gear oil or equivalent at port (A). Fill crankcase level to check port (B). Check level daily thereafter.
|
12R/16R Piston Pump (If Equipped)
|
|
|
OUO6435,0001EE2 -19-11JUN08-4/4
|
|
