OMA86845: 1770NT CCS Planter With Pro-Series XP™ Row Units, Block File: OUO6435_0001EE7_19

Lubrication-Every 10 Hours or Daily 24 Row

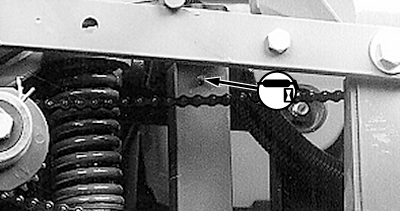

24R Gauge Wheels

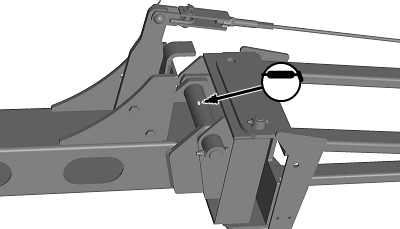

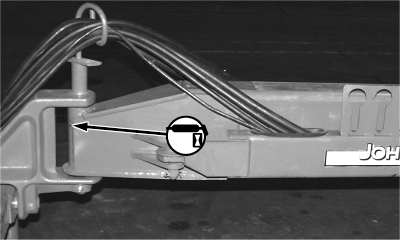

24R Hitch Pivot

24R Hitch Pivot

24R Tillage Support Bracket (If Equipped)

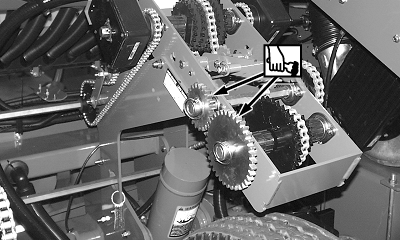

24R Variable Rate Pump Shafts (If Equipped)

24R Frame Mounted Fertilizer Opener (If Equipped)

OUO6435,0001EE7 -19-29MAY08-1/6

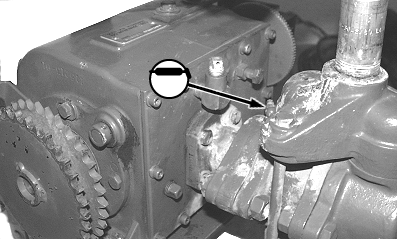

Cover weep hole (B) tightly with your finger. Pump grease into fitting (A) until the pressure pushes the grease past your finger. Repeat on other pump.

A-Grease Fitting
B-Weep Hole

24R Fixed Rate Pump Shafts (If Equipped)

OUO6435,0001EE7 -19-29MAY08-2/6

Variable Rate Pumps (If Equipped)

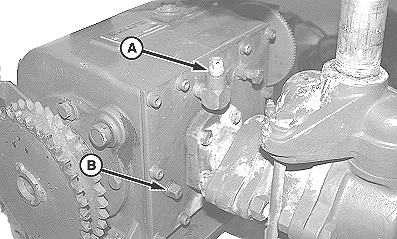

1. Lower machine to plant position before checking oil level.

2. Remove vent plug (A) and check plug (B).

3. Fill crankcase with TY6296 SAE 80W90 GL-5 gear lube or equivalent through vent port until lube is level with check port.

4. Install plugs.

5. Repeat on second pump.

A-Vent Plug
B-Check Plug

OUO6435,0001EE7 -19-29MAY08-3/6

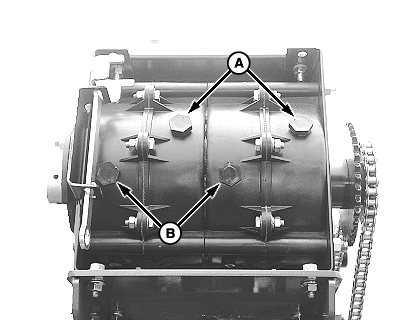

Fixed Rate Pumps (If Equipped)

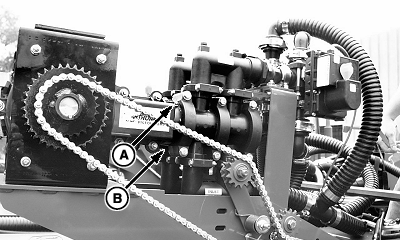

1. Lower machine into plant position before checking oil level.

2. Remove fill plugs (A) and check plugs (B) from both pump crankcases.

3. Fill EACH crankcase with SAE 30 TY22070 Torq-Gard Supreme ™ engine oil or equivalent at fill ports until oil is level with check ports.

4. Install plugs.

A-Fill Plugs
B-Check Plugs

Torq-Gard Supreme is a trademark of Deere & Company

OUO6435,0001EE7 -19-29MAY08-4/6

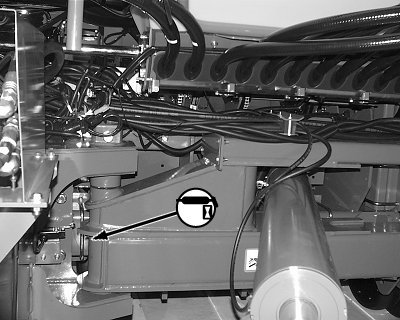

24R Frame Fold Point

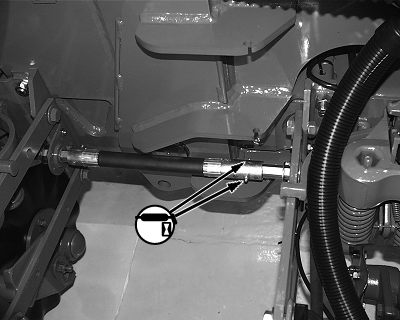

24R Flex Shaft

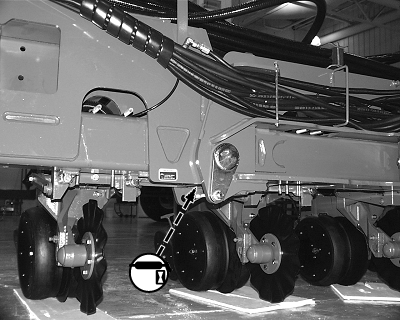

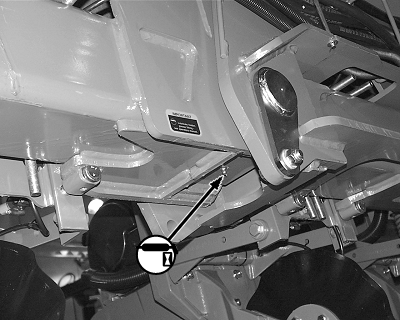

24R Wing Flex Point

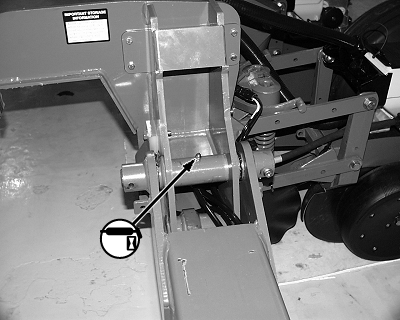

24R Wing Flex Point

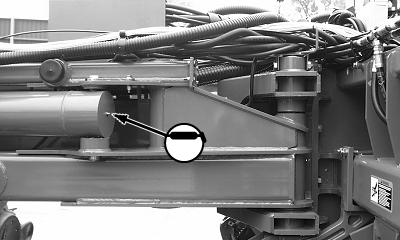

24R Fold Cylinder

24R Smear A Small Amount Of Grease

OUO6435,0001EE7 -19-29MAY08-5/6

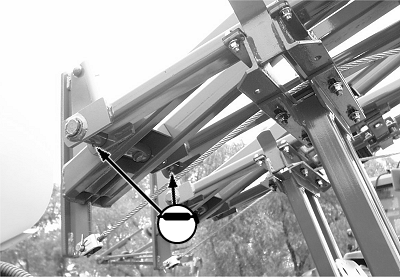

24R Marker

24R Marker

24R Marker

OUO6435,0001EE7 -19-29MAY08-6/6
