Vacuum Manifold Tube Orifice Placement-12 Row

Single Vacuum Machines Only:

Orifices (A) are installed in the vacuum tube manifold on rows 5, 6, 7 and 8.

Orifice Placement
Row Numbers Orifice Color
5, 6, 7 and 8 Yellow




A-Orifice

A49013

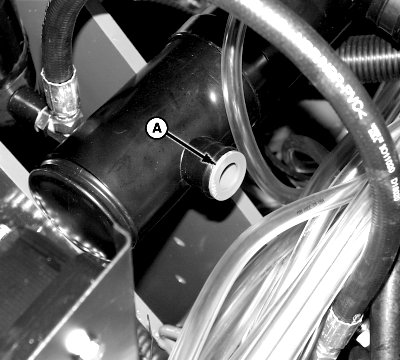

Vacuum Manifold Orifice
