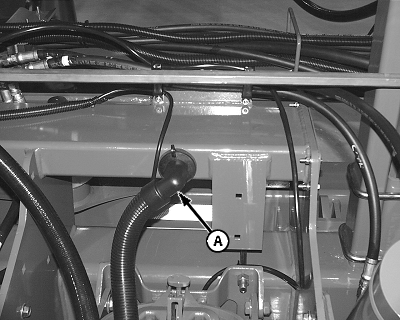

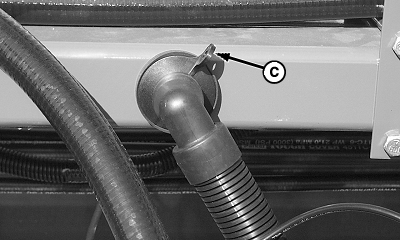

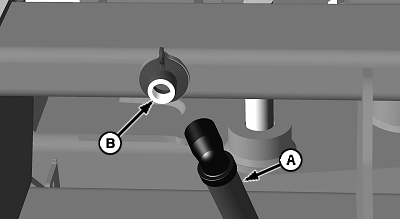

Vacuum Manifold Orifice Placement-24 RowRemove vacuum hoses (A) from manifold tubes on rows 9, 10, 11, 12, 13, 14, 15 and 16. Yellow orifices (B) should be installed in manifold fittings. Tab (C) must be turned at a 45 degree angle when installed to hold coupler in frame.
|
|
