Replacing Marker Breakaway Bolt-12/16 Row

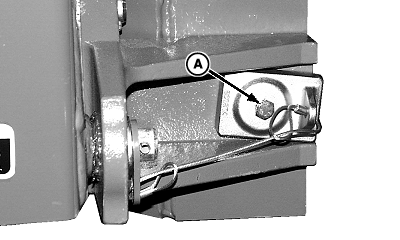

The marker breakaway bolt (A) provides breakaway protection when the marker hits an obstacle.

To replace the breakaway bolt, proceed as follows:


A-Breakaway Bolt

A53162

OUO6435,0001EFC -19-20JAN06-1/2

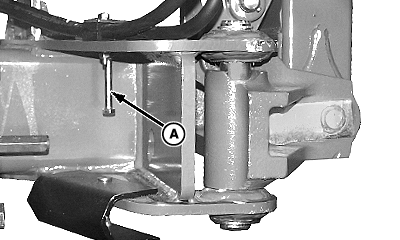

NOTE: Extra shear bolts (A) are located on the inside of each marker casting.

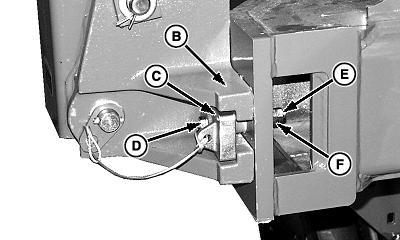

Return marker arm (B) to operating position, install spacer (C) and insert breakaway bolt (D) through hole in machine frame.

Tighten breakaway bolt with nut (E) to specification and secure with jam nut (F).

Specification

Nut (E) -Torque 81 N·m (60 lb-ft)


A-Extra Shear Bolts
B-Marker Arm
C-Spacer
D-Breakaway Bolt
E-Nut
F-Jam Nut

A53163
A53164

OUO6435,0001EFC -19-20JAN06-2/2
