Adjust Marker Winglet Switch-24 Row

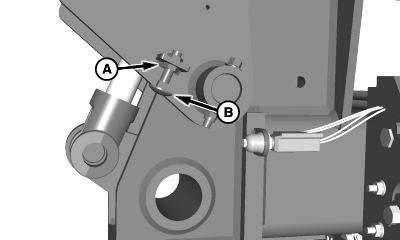

1. With planter winglet raised, loosen jam nuts (A) and turn round head bolt (B) in toward marker wing five complete revolutions. This is to ensure round head bolt will not contact switch before winglet is lowered.

2. Lower winglet completely.


A-Jam Nut (2 used)
B-Round Head Bolt

A53431

OUO6435,0001EFF -19-02OCT06-1/3

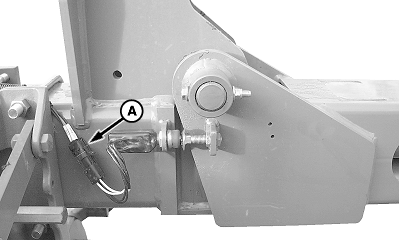

3. Disconnect connector (A).


A-Connector

A53432

OUO6435,0001EFF -19-02OCT06-2/3

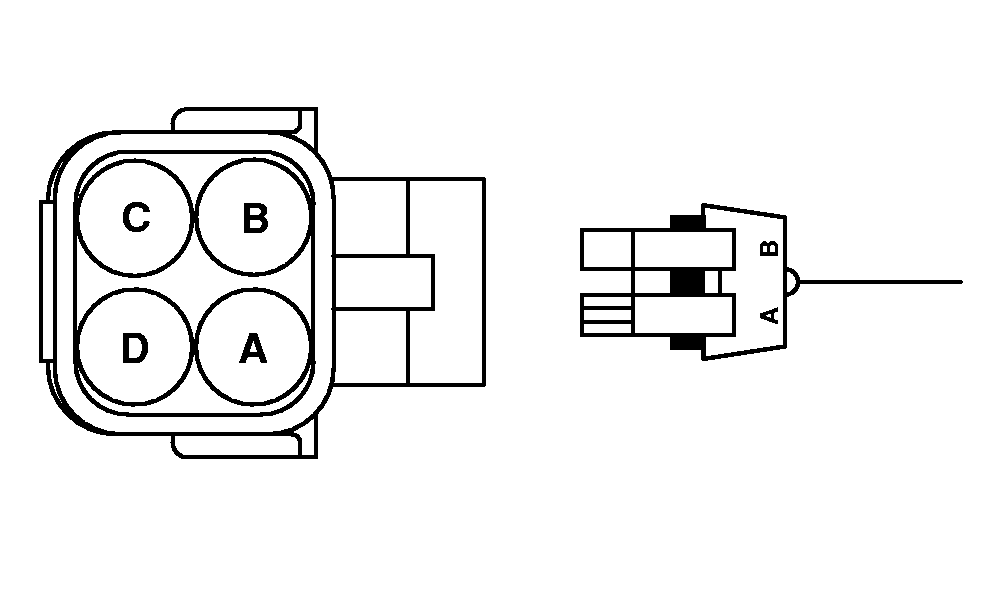

4. Connect ohmmeter to pins (A and D) or pins (B and C).

5. Turn round head bolt towards switch. Continue turning round head bolt into switch until there is a change in resistance, open or closed circuit.

6. Turn round head bolt in an additional 1/2 turn and tighten jam nuts.

N54674

OUO6435,0001EFF -19-02OCT06-3/3
