Cleaning Wing Pivots-12/16 Row

Due to the 21 degrees of flex, clean dirt and debris from under plate (A) and on top of plate (B) on both wing pivots to prevent damage to the frame.


A-Plate
B-Plate

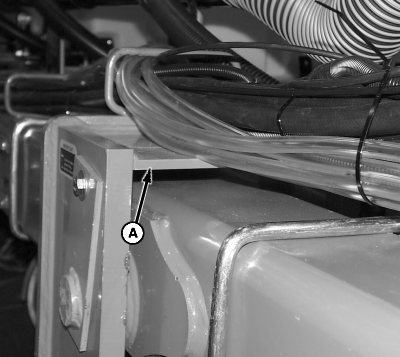

A47994

Top Side

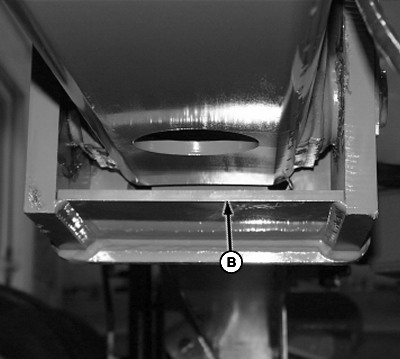

A47995

Bottom Side

OUO6435,0001F03 -19-20JAN06-1/1
