Tightening Wheel Bolts (6-Bolt and 8-Bolt Hubs)

IMPORTANT: Check torque on wheel bolts prior to operation, after initial 10 hours of use and after every 50 hours.

Tighten all wheel bolts (A) to specification.

Specification

9/16 in. Wheel Bolts -Torque 176 N·m (130 lb-ft)
M16 Wheel Bolts -Torque 350 N·m (258 lb-ft)

Wheel Bolt Identification
  6-Bolt Hub 8-Bolt Hub
12 Row 9/16 in. Wheel Bolts 9/16 in. Wheel Bolts
16 Row 9/16 in. Wheel Bolts 9/16 in. Wheel Bolts
24 Row 9/16 in. Wheel Bolts M16 Wheel Bolts

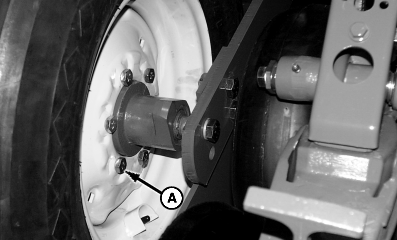

A47974


A-Wheel Bolt

OUO6435,0001F0E -19-01FEB06-1/1
