Marker Float Range-12/16 Row

A35734


A-Dimension A

B-Dimension B

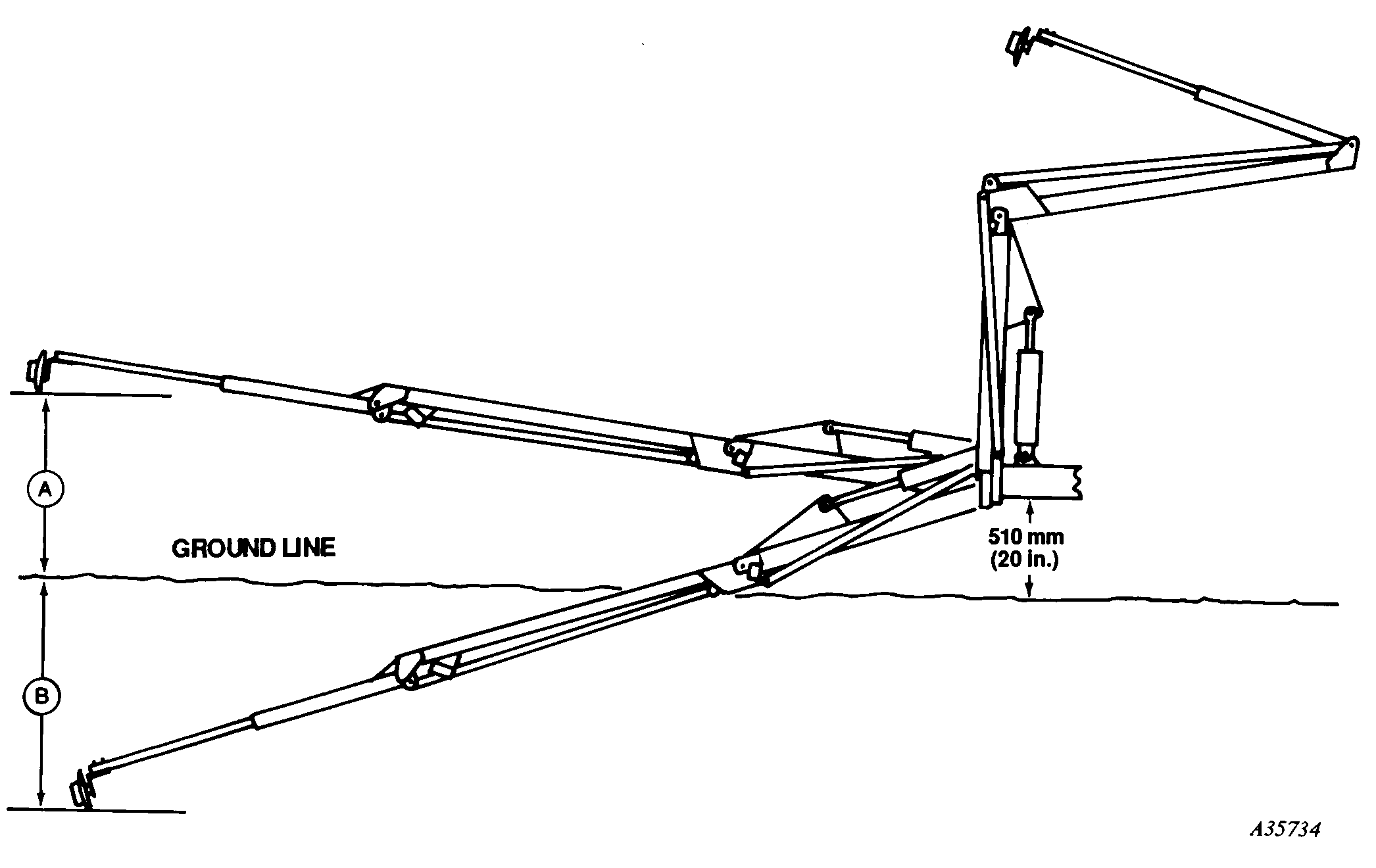

The marker has an approximate float range (see table) which should not be exceeded (e.g., when planting near drainage ditches or hillsides).

Exceeding this float range can result in damage to the marker inner arm.

If this range must be exceeded, raise the marker by operating the marker SCV lever.

Machine Row Spacing Dimension "A" Dimension "B"
12-Row 76 cm (30 in.) 1335 mm (52.5 in.) 1335 mm (52.5 in.)
16-Row 76 cm (30 in.) 1778 mm (70 in.) 1778 mm (70 in.)
